3-In-1 Fiber Laser Welding Machine

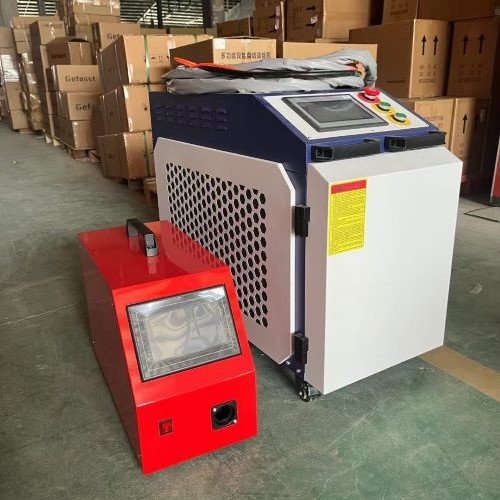

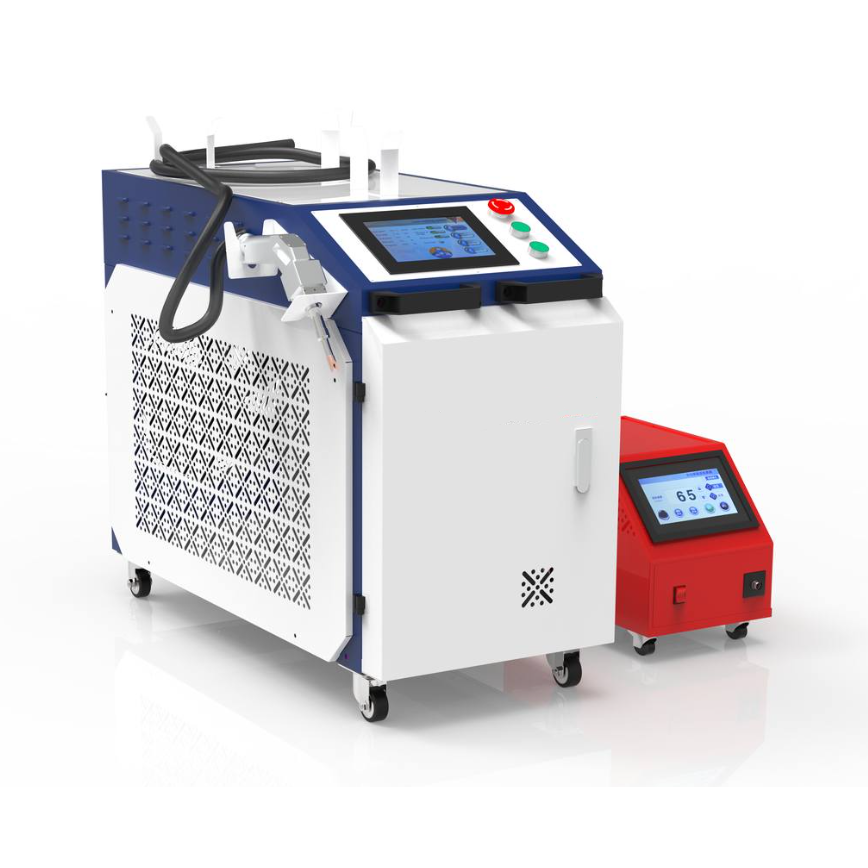

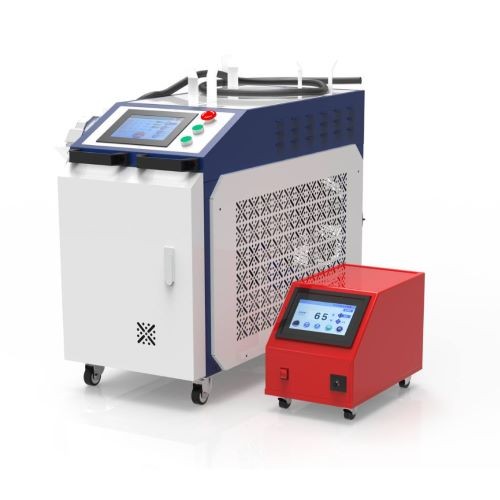

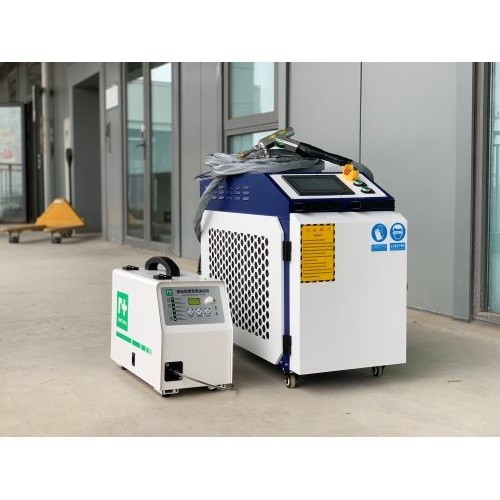

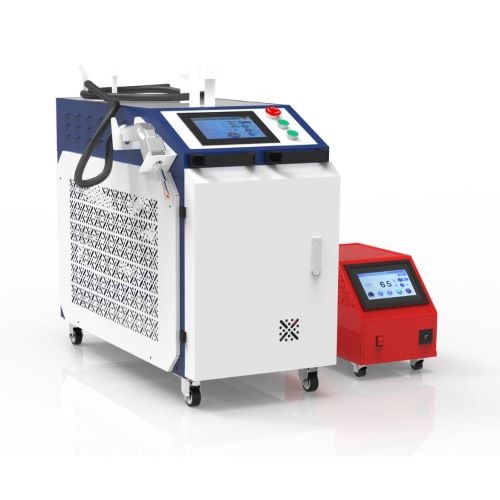

3-in-1 laser welding, cleaning, and cutting machine is a portable all-in-one laser system consisting of a three-in-one laser welding, cleaning, and cutting machine consisting of a fiber laser generator, a handheld laser gun, a water cooler, and a three-in-one control system for laser welding, cleaning and handheld cutting, each handheld laser gun is portable, convenient and easy to use. Its handheld laser guns can cut and weld metals and clean rust, paint, resin, coatings, oil, and stains.

Wide welding range: the hand-held welding head is equipped with 10M original optical fiber, which overcomes the limitation of the workbench space and can be used for outdoor welding and long-distance welding;

Convenient and flexible use: Hand-held laser welding is equipped with moving pulleys, which is comfortable to hold and can adjust the station at any time without fixed-point stations. It is free and flexible, and is suitable for various working environment scenarios.

A variety of welding methods: welding at any angle can be realized: lap welding, butt welding, vertical welding, flat fillet welding, inner fillet welding, outer fillet welding, etc., and can be used for workpieces with various complex welds and irregular shapes of larger workpieces welding. Realize welding at any angle. In addition, it can also complete the cutting, welding and cutting can be switched freely, just change the welding copper nozzle to the cutting copper nozzle, which is very convenient.

Cutting, welding, and cleaning are often closely connected upper and lower processes in metal processing operations. The traditional operation method often requires three different operating equipment to carry out three processes. In response to this problem, we provide customers with an integrated solution and launch a handheld laser cutting and welding all-in-one machine! This is a device with triple functions of laser welding, cleaning and cutting.

Quickly and easily removes oil, rust and coatings before welding, and removes debris and discoloration after welding, while performing cutting processes on a variety of plates. It can conveniently and efficiently help customers achieve the best work efficiency and meet most work scenarios. The welding swing width is as high as 5mm, and the cleaning swing length is up to 100mm. It can cut stainless steel plates below 6mm. The process index is strong, especially the cleaning index is almost unmatched.

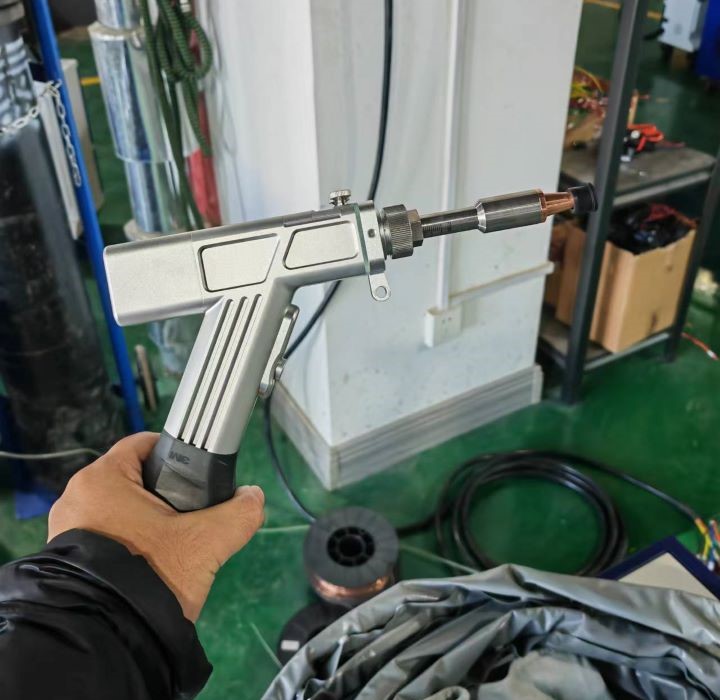

3-In-1 Laser Welding Head

The handheld type welding head can do welding, cleaning, and cutting with smart controller, easy to use for flexible machining, portable with small size, low cost without consumables.

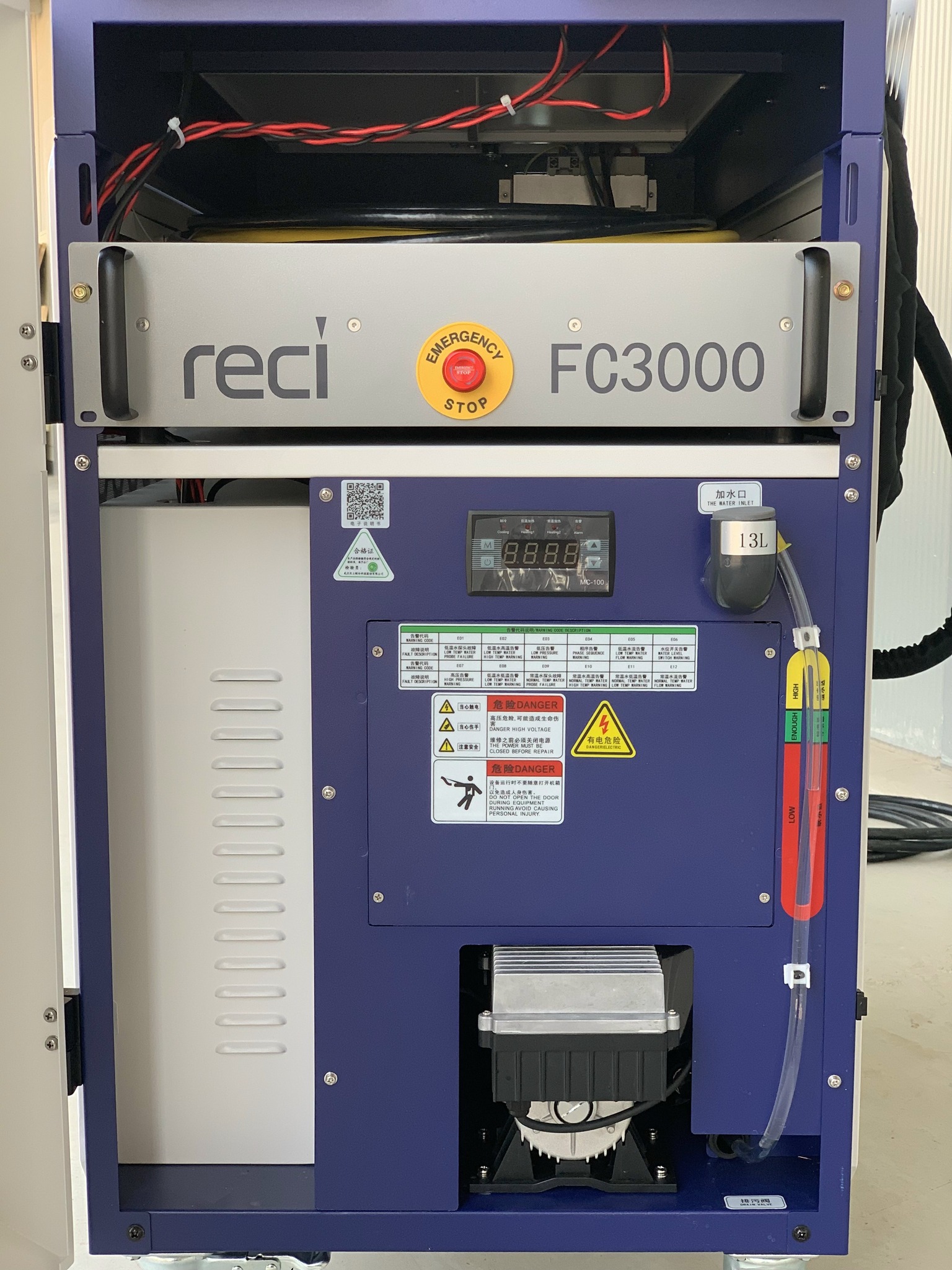

Fiber Laser Source

MAX, RECI,RAYCUS different brand laser source are optional with higher photoelectric conversion efficiency, lower error rate, low power consumption, maintenance free, and compact structure.

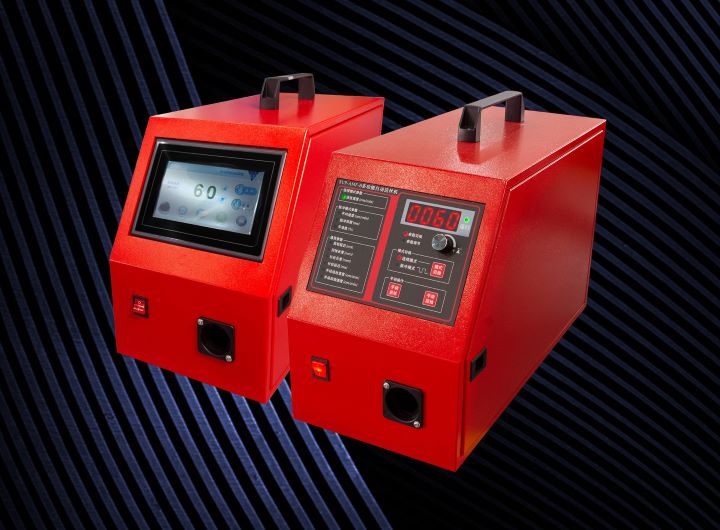

Wire Feeder

Laser welding automatic wire feeder can be matched with the customer's laser welding machine to achieve optical wire feeding and optical wire feeding. No pollution to the environment, low cost of use.six different wire feeding methods: pulse wire feeding, asynchronous wire feeding, delay wire feeding, continuous wire feeding, synchronous wire feeding, wire feeding in advance. Meet the welding of different material thickness.

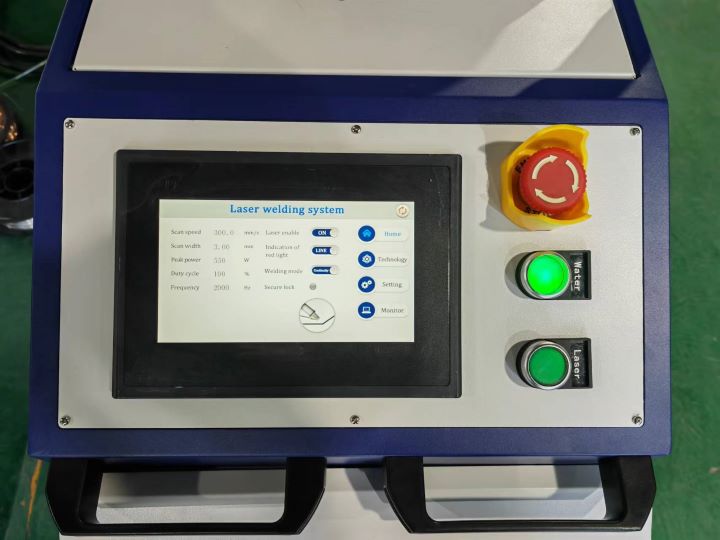

Control System

Welding software is easily operated as the human-computer interface. Strong software function can be realized by simple touch screen. It has editable and memory functions.

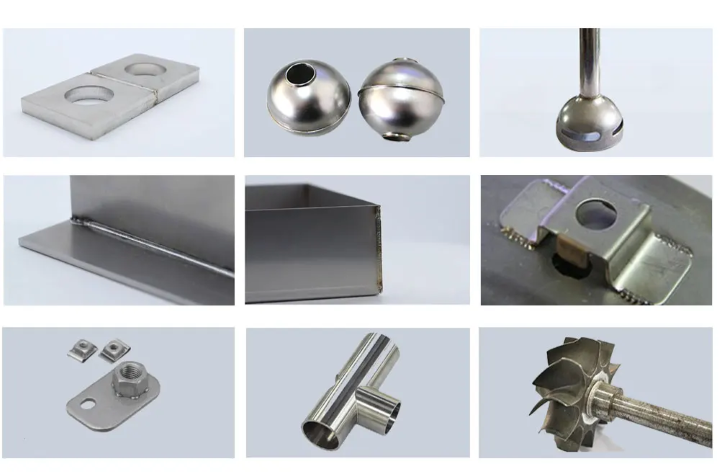

3 in 1 handheld laser welding machine can be used in manufacturing, automotive, shipbuilding, battery, aerospace, kitchenware.Shelves, elevators, guardrails, distribution boxes, ovens, metal furniture, biomedical, powder metallurgy, jewelry.

Electronics, hardware, optical communication, sensors, auto parts, porcelain teeth, glasses, solar energy and precision parts manufacturing.

Packaging:Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

Shipping:We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Central Asia and other inland countries.

Each machine is equipped with instructions and guidance videos.Before installation, we will provide the infrastructure diagram of the equipment installation, equipment installation schematic plan must be submitted in advance to the customer. User must confirm the real conditions fulfil requirements of installation according our engineer’s suggestions.
