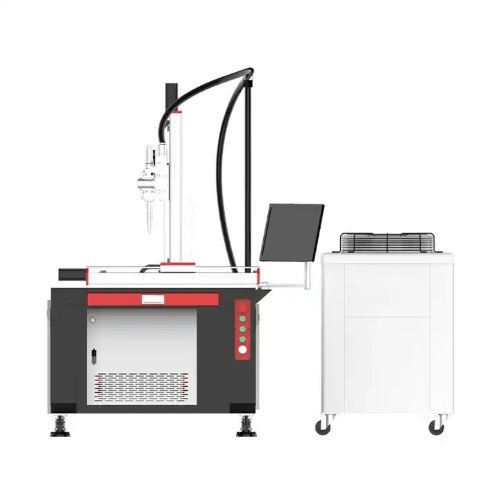

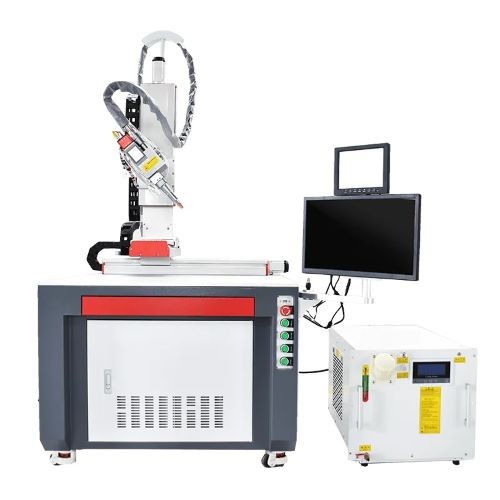

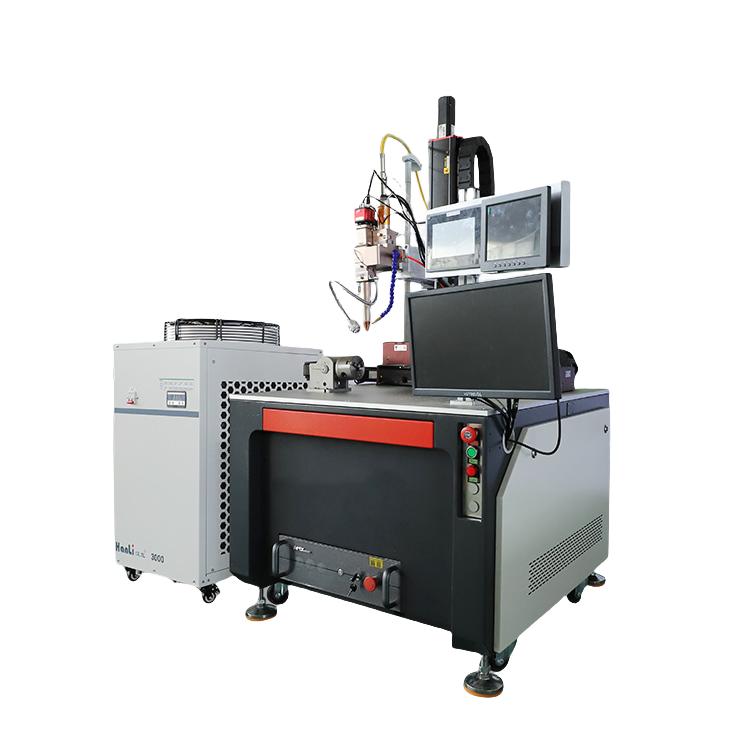

What Is Automatic Platform Laser Welding Machine |
Automatic laser welding machine is a type of computer numberical controlled laser welder to do automatic or semi-automatic butt welding, sealing welding, spot welding, overlap welding, and realize the welding of complex plane straight lines, arcs and arbitrary trajectories.
Compared with conventional welding methods, Automatic Fiber Laser Welding is a non-contact process with no equipment wear or consumable usage and delivers very little heat input resulting in minimal heat affected zones and part distortion.
Model
BMP-1000
BMP-2000
BMP-3000
Maximum
laser power
1000W
2000W
3000W
Wavelength
1070nm±10nm
1070nm±10nm
1070nm±10nm
Pulse
width
Continuous
light output
Continuous
light output
Continuous
light output
Welding
depth
Maximum
3mm
stainless
steel
Maximum
4.5mm
stainless
steel
Maximum
6mm
stainless
steel
Welding
depth
Maximum
1.5mm
Aluminum/Alloy
Maximum
3mm
Aluminum/Alloy
Maximum
4.5mm
Aluminum/Alloy
Overall
power
<4.8KW
<10KW
<10KW
Power
input
AC220V±10%/3P+PE
AC380V±10%/3P+PE
AC380V±10%/3P+PE
Cooling
method
Water-cooling
Water-cooling
Water-cooling
Fiber
optic model
QBH
QBH
QBH
Fiber
length
10m
10m
10m
Automatic Laser Weding Machine Technical Parameters
Intelligent design, fully automatically or semi-automatic welding, the automated laser welder can continuously and stably work for 24 hours to meet the needs of industrial mass production and manufacturing.
Advantages of Automatic Laser Welding Machine
Controlled by PC, special software assisted, easy to learn, the workpiece can be used for plane trajectory movement, welding any point, straight line, circle, square or any plane graphic composed of straight line and arc.
Beautiful welding seam, fast welding speed and no consumables. Automatic Laser Weldingcan perfectly replace the traditional argon arc welding and electric welding.
Simple operation, low requirements for workers, improve the quality, speed and flexibility for welding applications while reducing overall costs.
High aspect ratio of the weld seam, little heat input resulting in minimal heat affected zones and part distortion, fast welding speed.
Wide application and long service life, newly laser technology, maintenance free, modular design for the whole machine, stable performance.

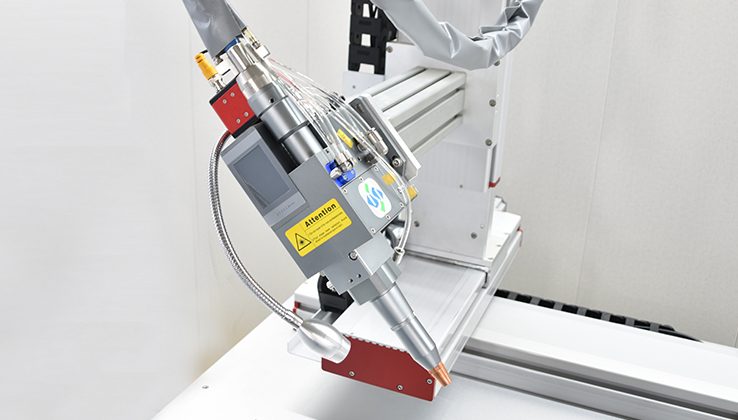

Laser Welding Head
Automatic Laser Welding Machine Detail
Laser welding can realize spot welding, butt welding, stitch welding, sealing welding, and other welding modes for thin-walled materials and precision parts
Combined with aiming combination design, visual CCD acquisition, integrated infrared sensor to ensure accurate positioning.

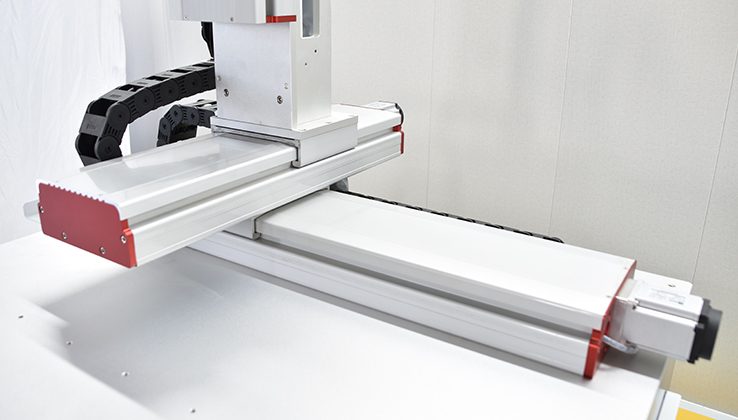

Multi-axis Servo Welding Table
High positioning accuracy, sensitive response, shockproof design, no need to move the product manually, automatic movement for welding.

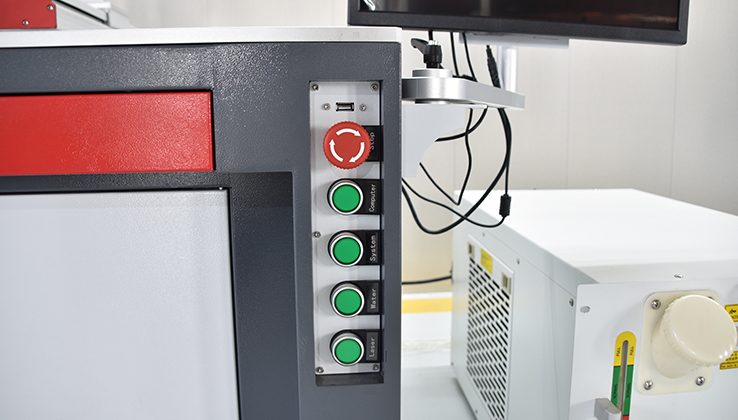

Operating system
Industrial PC control, the workpiece can move on the plane track, and can weld point, straight line, circle, square or any plane figure composed of straight line and circular arc; for docking, spot welding, edge, lap, lap, joint, T type docking, affinity welding, deep weld, narrow weld, high welding rate.
Automatic Laser Welding Machine Application |

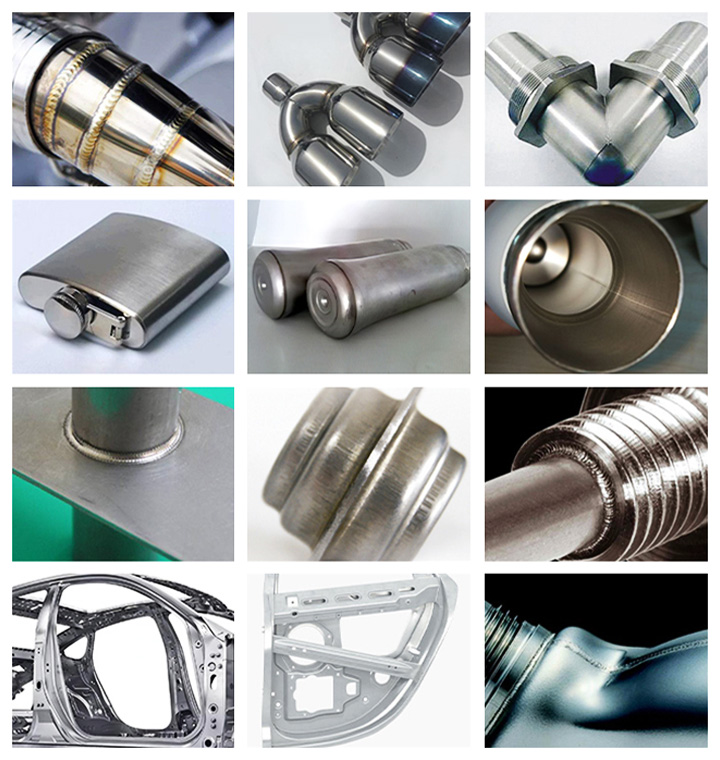

Platform Automatic Laser Welding Machine is suitable for continuous welding of various metals like stainless steel, die steel, carbon steel, nickel, zinc, aluminum etc. Especially in thin plate welding has obvious advantages.
Automatic Fiber Laser Welder is widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automobile manufacturing industry, lithium battery industry, machinery manufacturing industry, furniture industry, sheet metal fabrication industry, power battery, electronic communication industry, metal connectors, kitchen and bathroom electrical equipment, mobile phone accessories (medium plate, nut), hardware, structural parts, automotive parts, medical equipment, and more precision parts.
