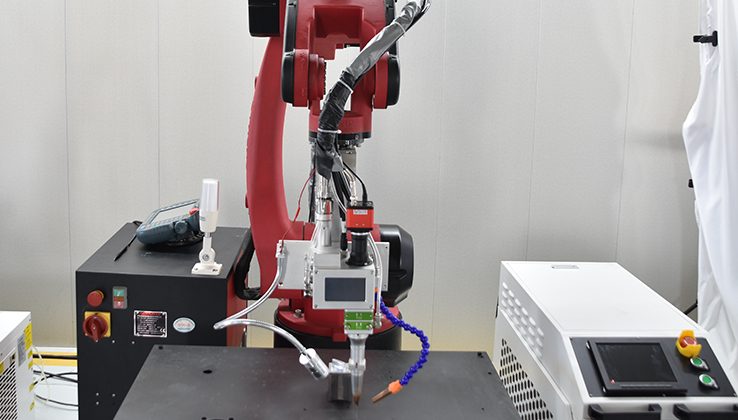

What is Robotic Laser Welding Machine |
The industrial robotic laser welder is a sophisticated industrial automation system that combines robotics and laser welding technology to perform precise and efficient welding on metal components. With the upgrading of high-efficiency and intelligent equipment in the manufacturing industry, the cabinets and supporting sheet metals of new energy and other related industry chains simultaneously stimulate the demand for laser robot automatic welding processes. Robot-assisted production is becoming more and more common.
Robotic Laser Welding Machine Parameters |
Model |
BWR-1500/2000/3000 |
Product name: |
6 Axis Robotic Automatic Laser Welding Machine |
Usage: |
Metal Welding |
Wavelength: |
1070nm |
Laser Source Brand: |
RECI/RAYCUS/MAX |
Laser Head Brand: |
WSX/Raytool/OSPRI Optional |
Core Components: |
Laser Source |
Laser type: |
Fiber Laser Source |
Laser power: |
1000W-3000W Optional |
Application: |
Metal Stainless Steel Laser Welder |
Axis: |
6 Axis |
Power supply: |
380V |
What is Role of The Each Axis of Robot Arm |
The second axis: it is mainly an important axis to control the robot to swing back and forth and stretch.
The third axis: It controls the robot to swing back and forth, but the swing range is smaller than the second axis, but this is also determined by the arm span of the six-axis robot.
The fourth axis: It is an axis that controls the 180° free rotation of the upper arm, which is equivalent to the human forearm.
The fifth axis: It is very important. When you adjust the position and accurately locate the product, you need to use the fifth axis, which is equivalent to the human wrist.
Sixth axis: After the fifth axis is positioned on the product, some minor changes are required, and the sixth axis is required. The sixth axis is equivalent to a turntable that can rotate 360° horizontally. Products can be positioned more precisely.
Robotic Laser Wleding Machine Details |

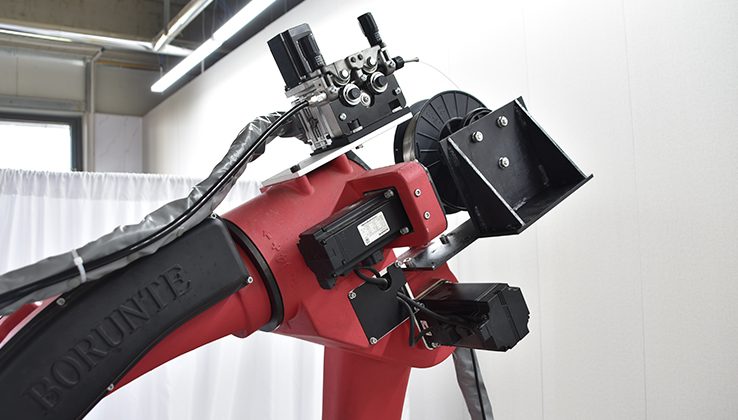

6-axis Robotic Arm
Collaborative robot arms can effectively handle laser welding operations and help achieve flexible, efficient and free welding processes which is responsible for holding and positioning the welding tool. These robots are programmed to follow specific welding paths.

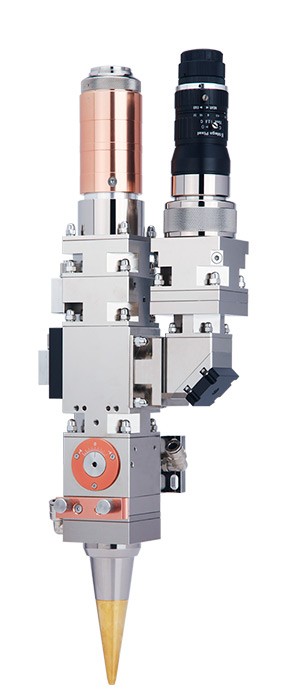

WSX Welding laser head
The welding head uses the motor to drive the X and Y axis vibration lens, which has a variety of swing modes, and the swing welding allows the workpiece to have irregular welding, larger clearance and other processing parameters, which can significantly improve the welding quality. The internal structure of the welding head is completely sealed, which can avoid dust contamination of the optical part.

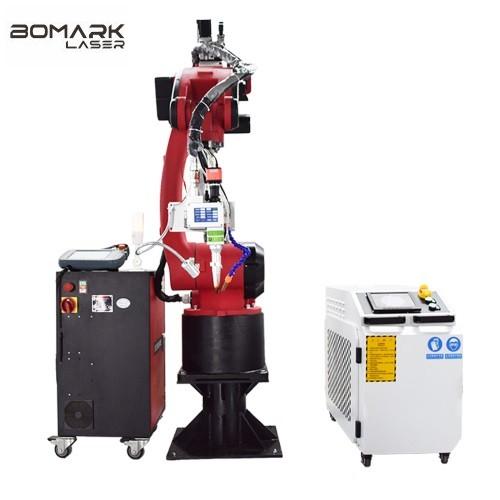

Special Laser Welder
Small deformation, beautiful welding seam with no need for post-weld grinding. Parameters can be adjusted according to material and process, making it versatile for such as Internal fillet welding, external fillet welding, splice welding, spot welding, fish scale welding. Suitable for welding common metals like iron, stainless steel, galvanized alloys, and aluminum alloys.

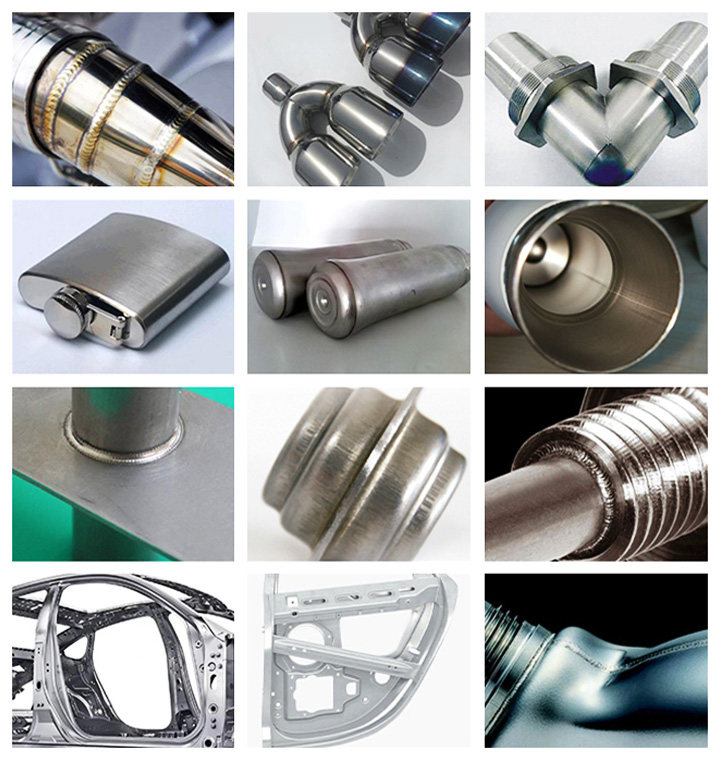

Robotic Laser Welding Machine Application |
Robotic Laser welding is commonly used in metal materials and can join metal or non-metal materials. Steel, aluminum and aluminum alloys are commonly welded using this process. Copper joints, copper-copper and copper-aluminum welding, which are often required in the production of lithium batteries, are also suitable for laser welding machines.
We have automation solutions for different industries, such as automobile production, electronic component manufacturing, medical equipment, and battery pack production in the energy field. Please contact us for better solutions. Robotic laser welding is an accurate, clean and flexible option for a wide variety of welding applications.
