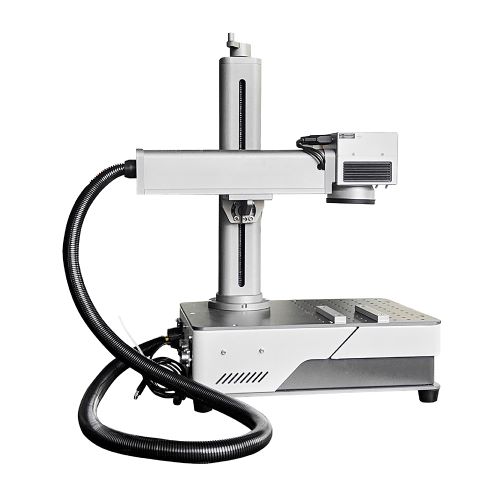

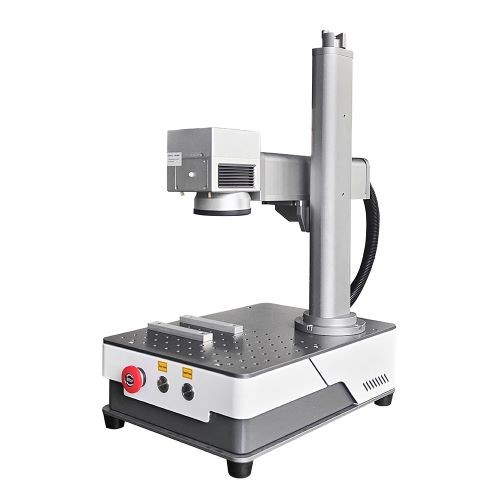

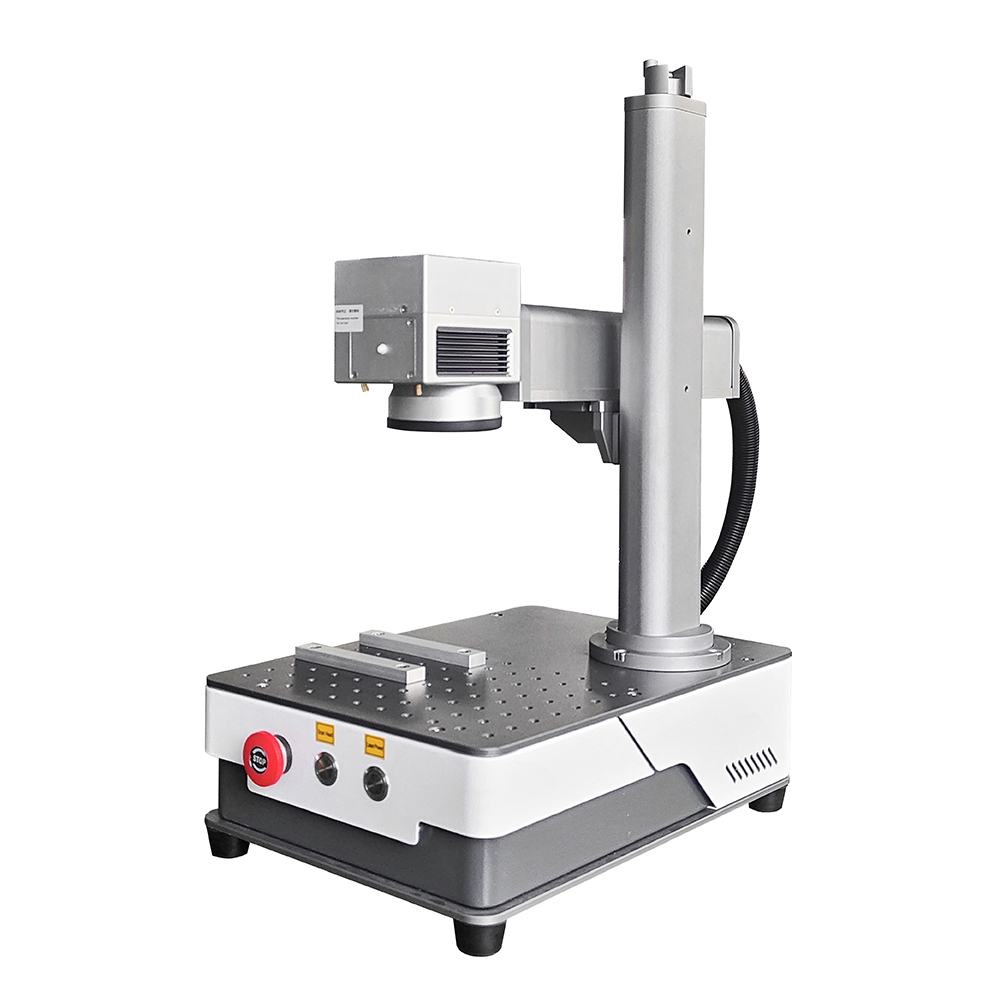

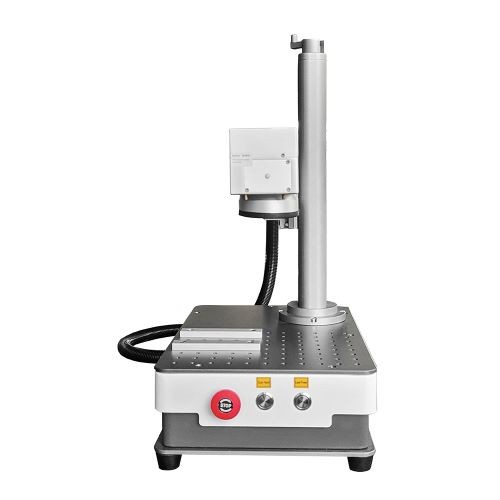

Mini Fiber Laser Marking Machine 20W,30W

Hot Sale Small Size Fiber Laser Marking Machine

Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed, without distortion.




Main Feature:

Support iphone , ipad IOS LaserMark APP.

Mobile Phone Android system has no APP, can use Lasermark website.

Do not support rotary clamp when use mobile phone.

When use display screen, support rotary clamp.

Small Size Fiber Laser Marking Machine Parameters

Model

BMF-20/30/50

Laser Source Options

RAYCUS/MAX/JPT

Fiber Power Options

20W,30W,50w

Laser Wavelength

                                                            1064nm

Marking Range

110mm x 110mm,150*150mm,175*175mm, 200mm x 200mm & 300mm x 300mm

Marking Speed

7000-12000mm/s

Marking Depth

Depend on materials

Repeated Accuracy

0.001mm

Image Formats

Supports AI, JPG, PLT, BMP, DXF, JPG, TIF, PNG, etc

Power Supply

220V/110V, 50HZ/60HZ

Packing Dimensions

760*510*680mm

Gross Weight

32 kg

Sample Display:


Industry Application:

Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.

Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.

Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.

Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.

Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.


Marking Materials:

Fiber laser marking machine could work perfectly for most metal materials. Such as Gold Silver Brass Jewelry, Aluminium, Stainless Steel, Iron Copperetc. And some plastic materials, such as ABS.
