Portable Fiber Laser Marking Machine 20W 30W 50W

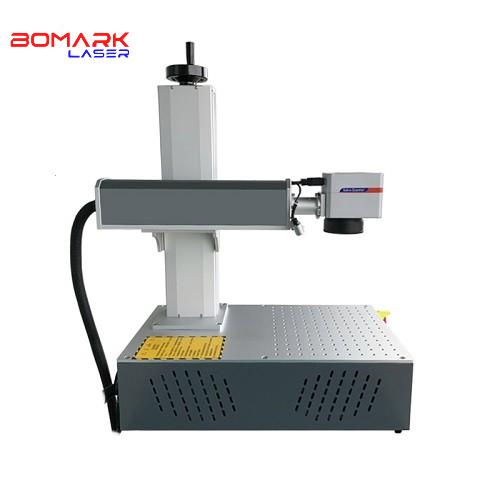

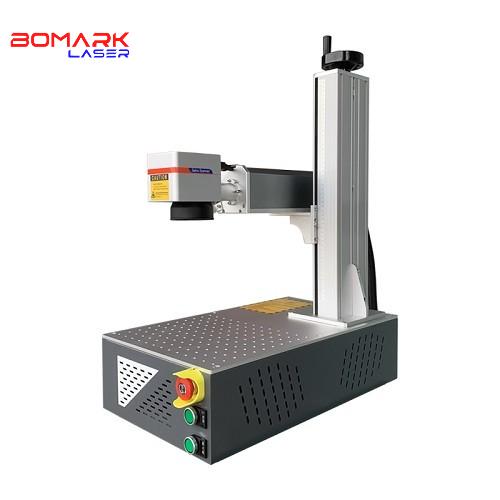

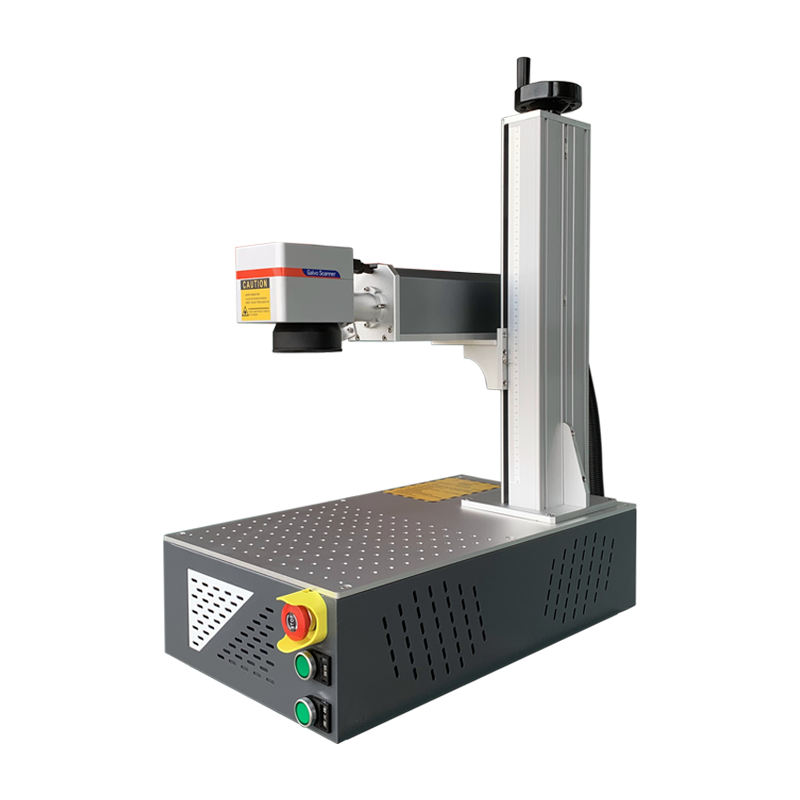

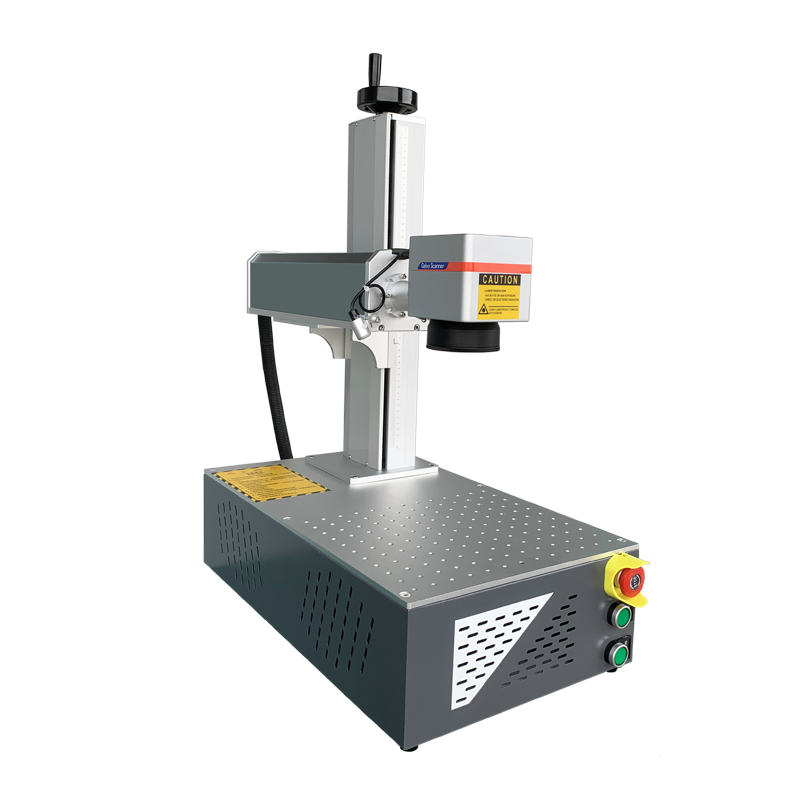

What is Mini Portable Fiber Laser Marking Machine

This desktop mini laser marking machine uses a strong pulse laser beam to hit the objects directly on the surface, enabling the surface to produce extremely deep color, high contrast marking, so as to achieve a consistent perspective of the persistence marking, with corrosion resistance.

This mini laser marking machine uses 1064nm wavelength fiber laser source and an integrated design, the whole machine is small and easy to carry, compact and firm, removable and folded, can easily meet most common laser marking applications.

The mini laser marking machine is economical and practical, and its performance is comparable to that of stand-alone laser marking machine.The position of the column can be adjusted at will, which is very flexible.

Mini Portable Fiber Laser Marking Machine Features

1. This mini laser marking machine is small and portable, economical, flexible and diversified, cost-effective.

2. Integrated design, compact and firm structure and stable performance.

3. The laser path and column can be flexibly disassembled and stored, and the marking position can be arranged at will.

4. Adopt high-quality laser source with good spot quality, uniform optical power density, stable output optical power, no light leakage, high reflection resistance, etc.

5. Adopt storage type rotary lifting control design, it’s simple and beautiful, convenient to operate.

6. The small laser engraving machine supports WINDOWS system, the control software has powerful functions, supports various marking formats, and the operation is simple and easy to learn.

7. With double red light galvanometer laser scanning head, metal body structure and built-in double red light marking indication, it has the advantages of adjustment-free, maintenance-free and high stability, and can upgrade the high-speed digital scanning galvanometer.



Mini Portable Fiber Laser Marking Machine Parameters

Model

BMF-20/30/50/60/100

Laser Source Options

RAYCUS/MAX/JPT

Fiber Power Options

20W,30W,50w,60W,100W

Laser Wavelength

1064nm

Marking Range

110mm x 110mm,150*150mm,175*175mm, 200mm x 200mm & 300mm x 300mm

Marking Speed

7000-12000mm/s

Marking Depth

Depend on materials

Repeated Accuracy

0.001mm

Image Formats

Supports AI, JPG, PLT, BMP, DXF, JPG, TIF, PNG, etc

Power Supply

220V/110V, 50HZ/60HZ

Packing Dimensions

760*460*600mm

Gross Weight

48 kg


Mini Portable Fiber Laser Marking Machine Details

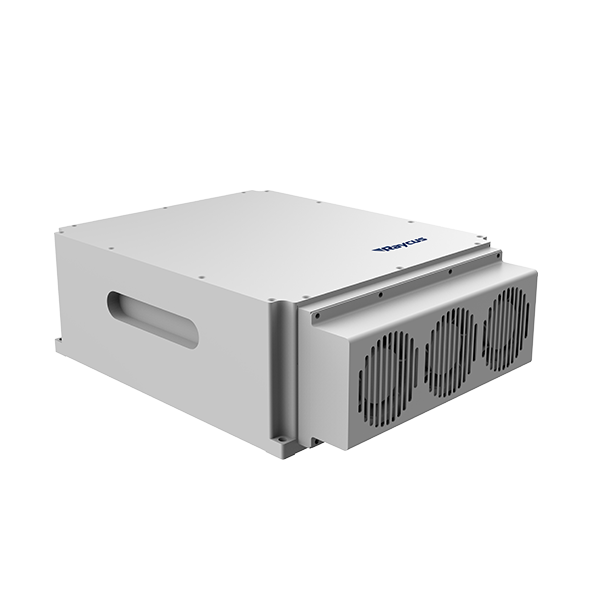

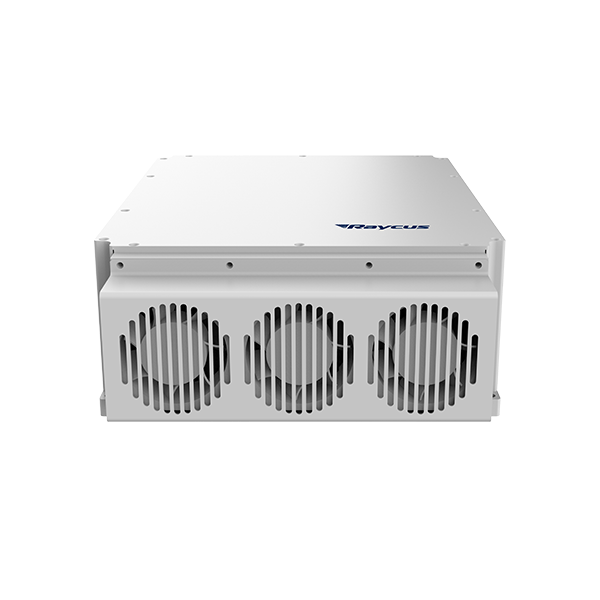

Laser Source

The 20-100W Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.

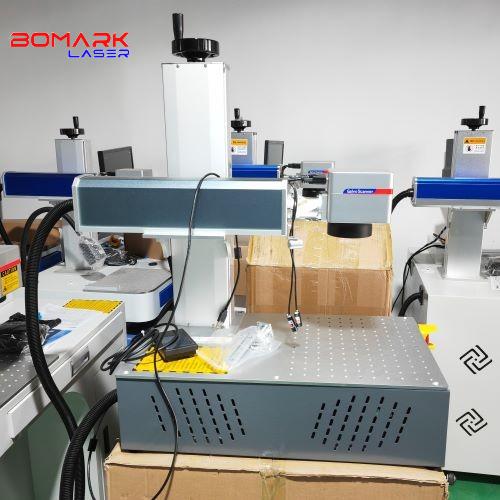

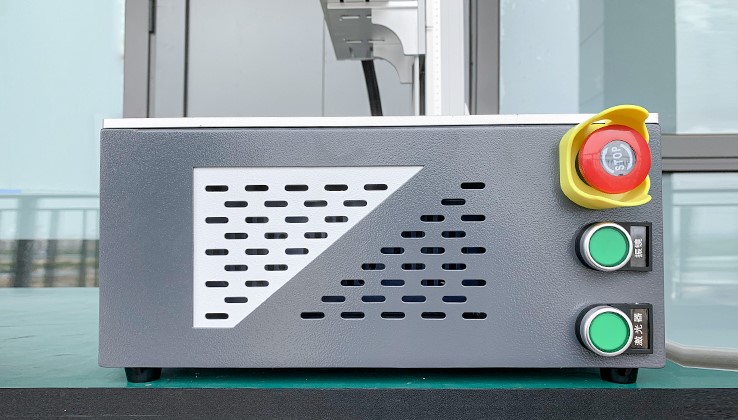

Smart Machine Body

Small size, light weight, easy to transport, suitable for air transport, you can receive within a week.


JCZ control board, popular & Stable

Famous brand in the world, easy to operate, comes with many languages, different kinds of functions. It can meet customers’ different needs.

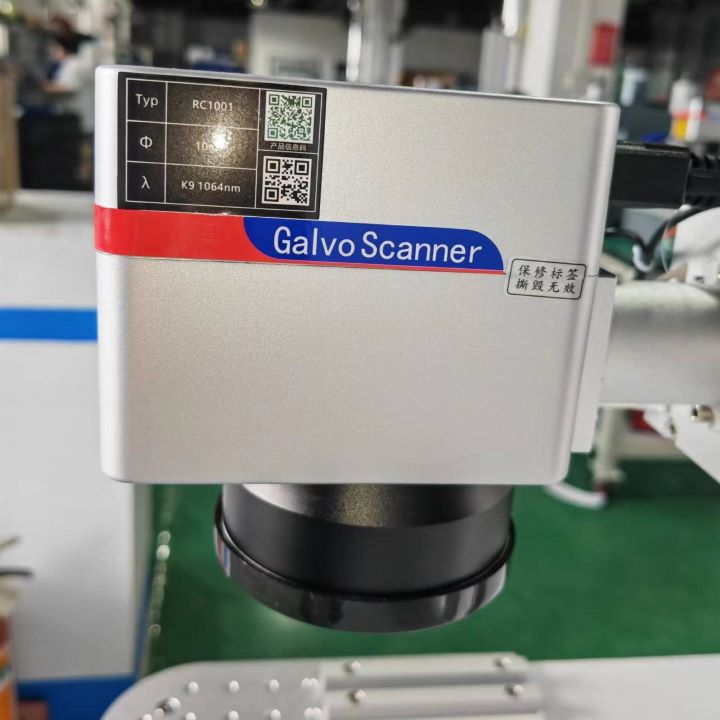

Sino-Galvo Galvanometer

The sino-galvo scanner has the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall performance of galvanometer has reached the international leading level in this field.

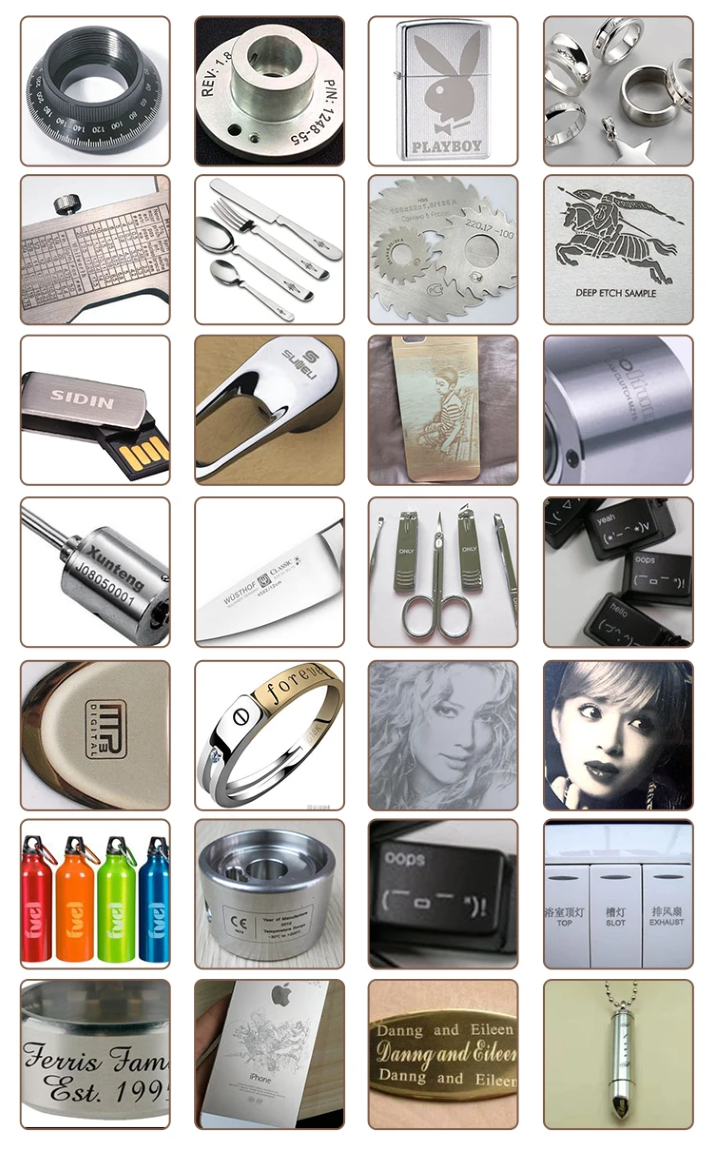

Mini Fiber Laser Marking Machine Application

1. Applied materials:

This mini laser marking machine is suitable for all kinds of metal materials, such as: stainless steel, iron, copper, aluminum, silver, etc., as well as some non-metallic materials, such as: PC, ABS and PVCPC+ABS.

2. Application industries:

This small laser engraving machine widely used in 3C, auto parts, electronic components, integrated circuits (PC), electrical appliances, precision instruments, all-in-one products, building materials, clocks and watches, jewelry, craft gifts and many other industries.

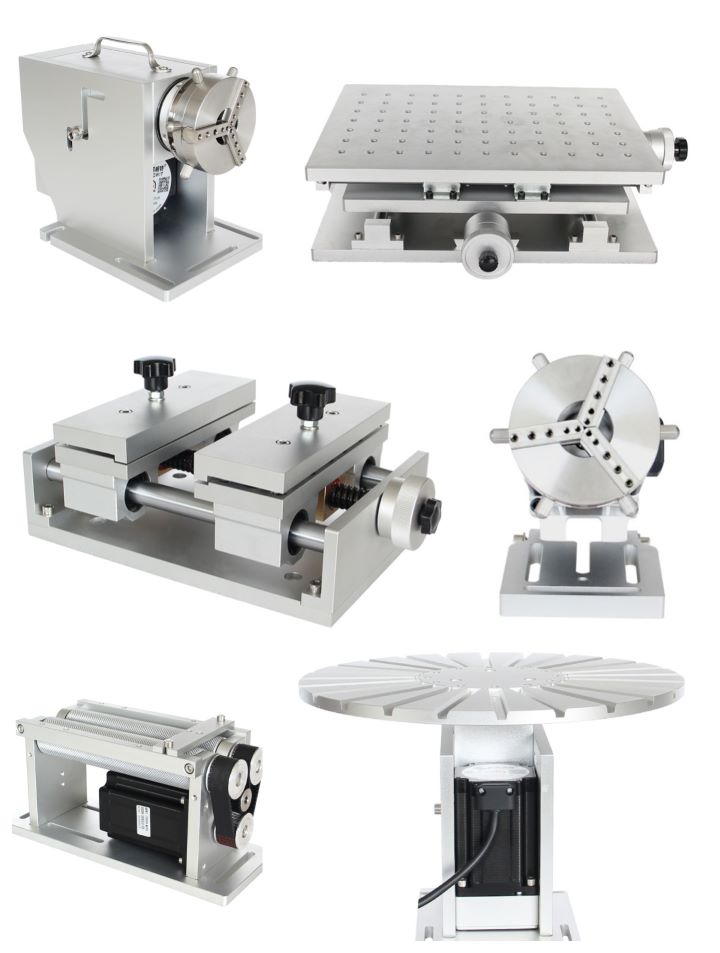

Mini Portable Fiber Laser Marking Machine Optional Accessories

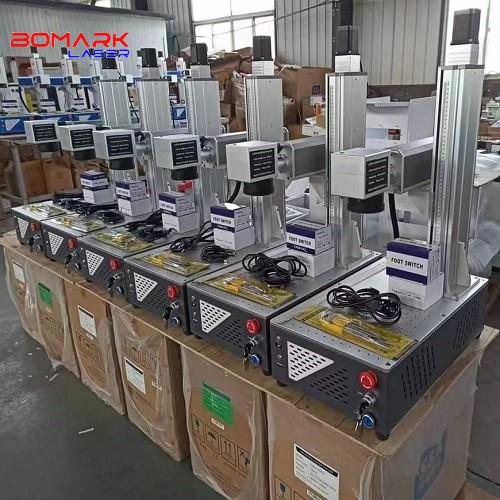

Mini Fiber Laser Marking Machine Packing &Delivery

Packaging:Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

Shipping:We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Central Asia and other inland countries.

Each machine is equipped with instructions and guidance videos.Before installation, we will provide the infrastructure diagram of the equipment installation, equipment installation schematic plan must be submitted in advance to the customer. User must confirm the real conditions fulfil requirements of installation according our engineer’s suggestions.
