What Is Flying Fiber Laser Marking Machine?
Flying fiber laser marking machine is a type of laser engraving system for marking on the fly (MOTF) in industrial mass production in the form of an assembly line. It adopts a rotatable laser head, which can realize marking in multiple directions, such as downward and forward. It can be installed in a variety of production lines to realize online flying marking.
How Does Flying Fiber Laser Marking Machine Work?
Flying fiber laser marking machine adopts a fiber laser generator, connected with a photoelectric probe, and automatically triggers to complete the automatic flying marking function on the assembly line. It can mark text and graphics. The flying laser marking system has strong text layout and graphics processing functions, and the flying laser marking system can automatically generate batch numbers and serial numbers. The plug-in intelligent control interface can be flexibly connected with various automation equipment and sensors, and the software functions can be flexibly modified according to specific conditions. For the characteristic requirements of the variable speed of the assembly line, optional speed card marking settings are provided to ensure the coordination of the symbol function and the speed.
Flight dynamic marking means that there is no work surface, and a more flexible method can be used to mark the appearance of the product without restrictions at 360 degrees, or it can be assembled on the assembly line, and the cooperation track rolls and completes the product marking. In recent years, it has caused widespread Applications. Choosing laser marking is not only environmentally friendly, but also anti-counterfeiting and enhances the product level from the side. The height of the main beam and the front and rear orientation of the flying laser marking machine can be easily scheduled. The laser head can be rotated 180 degrees and has a red light focus indicator device.
The composition of flying laser marking machine?

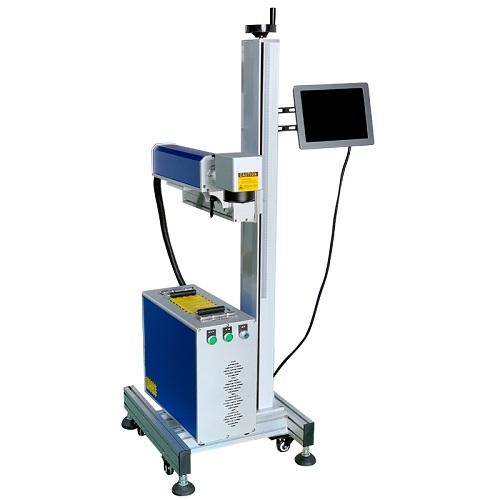

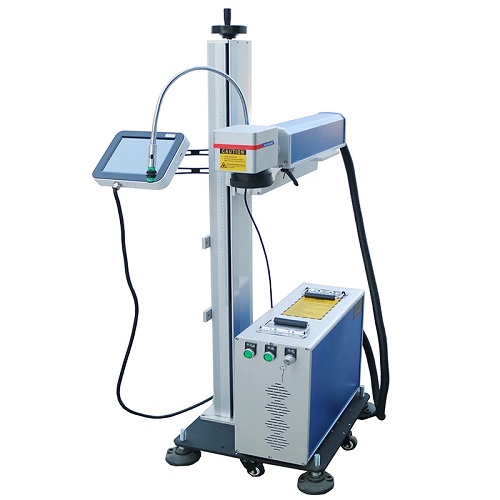

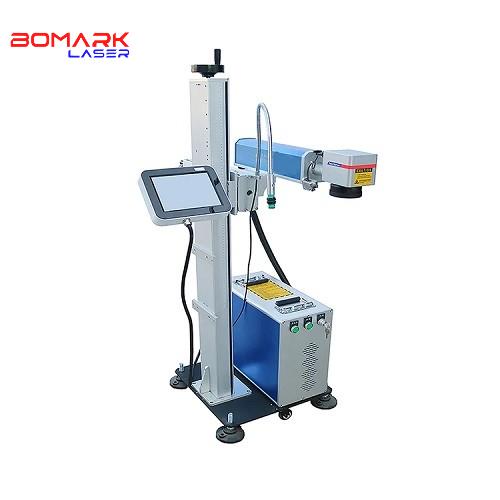

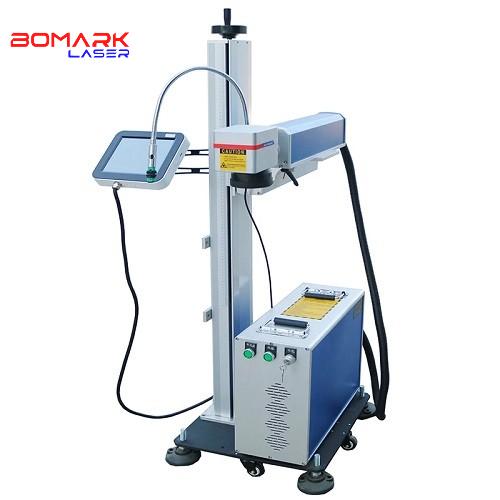

The flying type fiber laser marking machine, which comprises a post, marking, laser printing control system, laser cavity, base, electric control box, above the middle column is vertically positioned on a base, a rear panel control box and column connected by screws, after traversing tooling transverse in the column and central column the vertical position and fixed with screws, adjusting device before and after traversing tooling support frame is connected to the laser cavity is arranged transversely, adjusting device, laser printing control system located in the side column, marking and laser cavity with a connecting frame and is positioned at one end of the laser cavity. The optical fiber flying laser marking machine provided by the utility model has the advantages of compact structure, simple structure, easy manufacture and easy placement, and greatly reduces the space occupied by the equipment and is easy to move. And the fault rate is low, safe and reliable, easy to operate, easy to realize multi style marking scheme. One touch screen mode, the operation is more user-friendly, so that users easier to use.
Model
BMF-20/30/50
Laser
Source Options
Raycus,Max&JPT
Fiber
Power Options
20W,
30W,50W
Laser
Wavelength
1064nm
Marking
Range
110mm
x 110mm,150*150mm,175*175mm
Marking
Speed
7000-12000mm/s
Marking
Depth
Depend
on materials
Repeated
Accuracy
0.001mm
Formats
Supports
AI, JPG, PLT, BMP, DXF, JPG, TIF, PNG, etc
Power
Supply
220V/110V,
50HZ/60HZ
Packing
Dimensions
600*360*1360mm
Gross
Weight
75kg
Features of Flying Industrial Raycus Fiber Laser Marking Machine
1. Wide Application Range
It is used for many materials such as metal, plastic, leather, alloy.
It is suitable for users who require batch production and high marking precision in food printing, medicine printing, soft-drink printing, cigarette code, wines industry, mineral water, daily cosmetic, wires, cables and all types of production lines.
2. Permanent Marking
Laser marking is a permanent marking. It won't fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.
3. Long Service Time
Fiber laser model has a over 100,000 hours service life. Almost no maintenance during this period.
4. Easy To Operate
Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop.
5. High Precision
0.0025mm re-position accuracy. Minimum line width 0.01mm.
6. Non-Contact Process
Won't cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.
7. Portable
Integration design causes small volume. Can be easily installed. Small footprint, easy to move and transportation. Size like a computer case.
8. High Speed Scanning Galvo Mirror
Providing high speed precise marking & engraving.
9. Various Lens For Different Marking Size
F=100mm/160mm/254mm/300mm/430mm.
10. Red Dot Pointer
To indicate the laser beam position.
11. Different Brand Fiber Laser Source
IPG/Raycus/JPT 20W/30W/50W/100W fiber laser source for option.
12. Powerful Software
It can be used in many applications like serial number marking, data marking, text/logo/graphic marking, barcode, 2D code.
13. Support Files With Many Formats
PLT, PCX, AI, DXF, BMP, JPG, etc.
Various add-ons for different applications like rotary marking on cylinder items, automatic marking on production line, filling line.
Applications of Flying Fiber Laser Marking System
Applicable Industries
1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor.
2. Instrument: Panel Board, Nameplates, Precision equipment.
3. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools.
4. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware.
5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights.
6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, Wire Marking.
Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, gold, sliver, brass, steel, titanium, copper and other materials.
