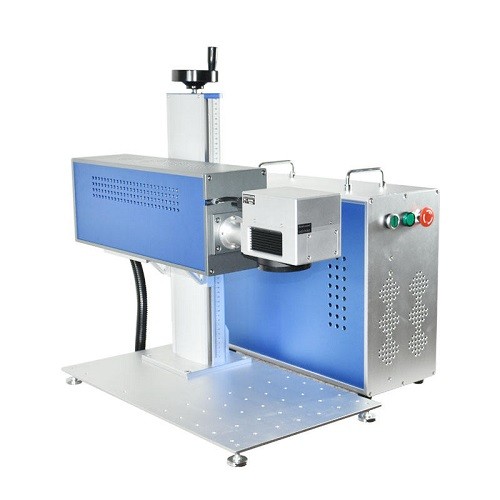

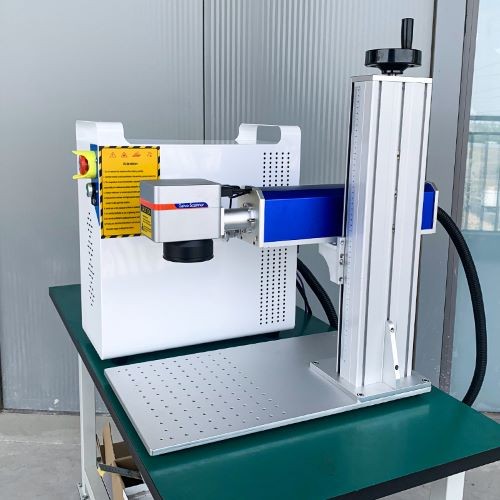

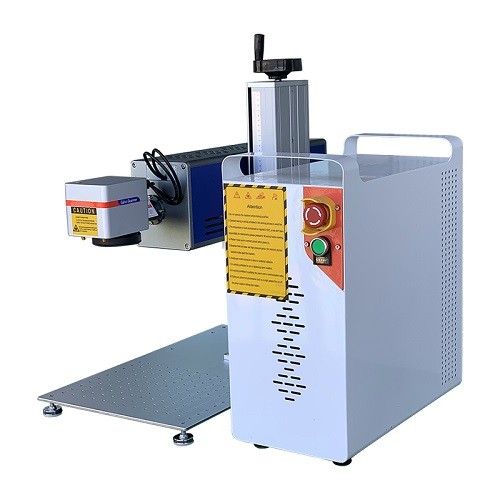

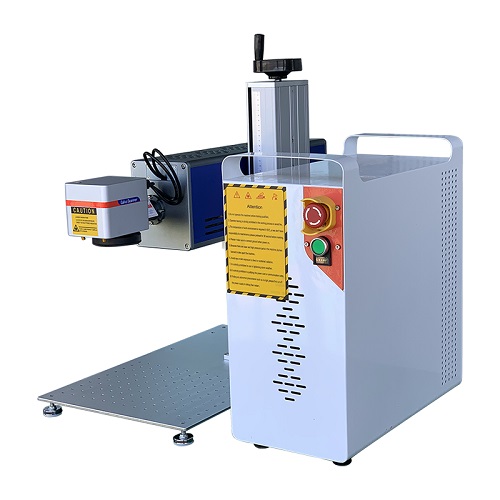

Split CO2 Laser Marking Machine 30W,60W

What Is CO2 Laser Marking Machine

The Co2 laser marking machine uses a high quality metal laser tube as the laser source. Through the two-dimensional high-speed scanning mirror under computer control to swing at a predetermined angle, the laser is focused on the surface of the workpiece through the focusing lens to form an image to achieve marking and graphic processing. The metal tube has excellent beam quality, stable power output, high marking accuracy, long service life, can work 20,000-30,000 hours maintenance-free, can be recharged by recharging co2 gas, suitable for users who need mass production marking accuracy.

Product Features Of CO2 Laser Marking Machine

1. Co2 laser markers take RF metal laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by focus lens to form images and realize marking and graph processing.

2. RF metal tube has exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 20,000-30,000 hours free of maintenance, then can be recharged by re-filling with co2 gas, suitable for users requiring batch production and high marking precision. Once invested, whole-life benefited.

3. Using digital fast-speed scanning laser head, it can be the graph in shortest time to finish fine marking process.

4. Simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.

5. It can configure automatic fixture, baiting production line.

6. It can be used to water bottle marking and pvc marking with data, serial number & bar code automatically. Co2 laser markers are also called acrylic marker, plastic marker, water bottle marker,marking on plastic,rubber marking.

CO2 Laser Marking Machine Parameters

Model

BMC-30/60

Laser source

CRD

Laser power

30W/60W

Weave length

10.64 um

Marking area

110*110mm,175*175mm,200*200mm

Laser repetition frequency

20KHZ-80KHZ

Marking speed

7000-12000mm/s

Marking depth

0.01-1mm

Repetition Precision

0.01mm

Minimum Line Width

<0.15mm

Minimum Character

0.3 mm

Cooling Style

Air cooling

Positioning Way

Red light

Control software

JCZ EZCAD  professional  laser marking software

Supported Format

PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC

Control board

JCZ

Operating Voltage

AC220V/50HZ/2A

Supported Windows

Windows XP,7,8,10

Certificate

ISO, CE, FDA

Material can be processed

Non-metal material

Others

USB cable for connection, Flash drive with software and English manuals.

Packaging

Wooden box

Packaging Dimension

880*870*1100mm

Gross weight

110kg

CO2 Laser Marking Machine Deatils

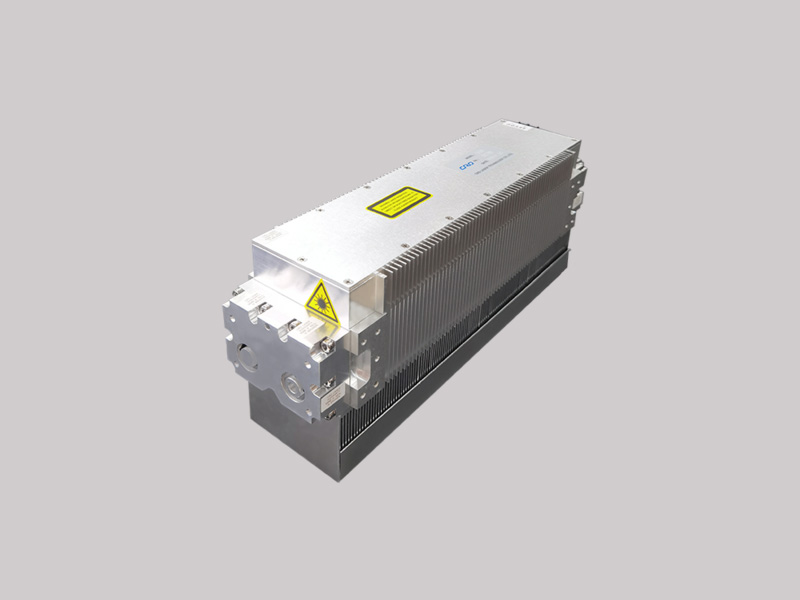

YongLi RF laser products adopt full metal and complete sealed structure with small size, free maintenance,and high beam quality.The output power is stable and can be adjusted conveniently.With longer lifetime, that is suitable for industrial continuous operation.

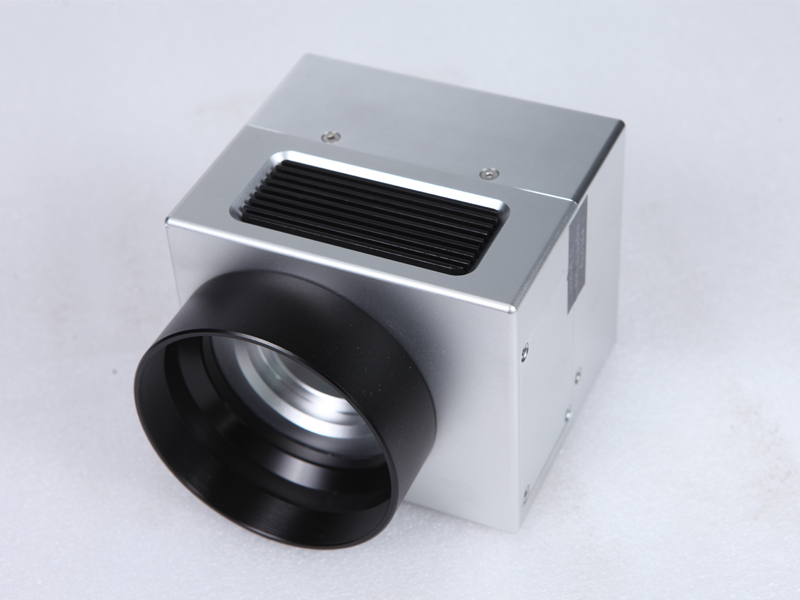

Galvanometer scanner is used for high speed and online flight marking. The standard incident spot diameter is 10mm.

galvanometer system has zero drift, high speed, small volume, low temperature and stable and reliable running etc.

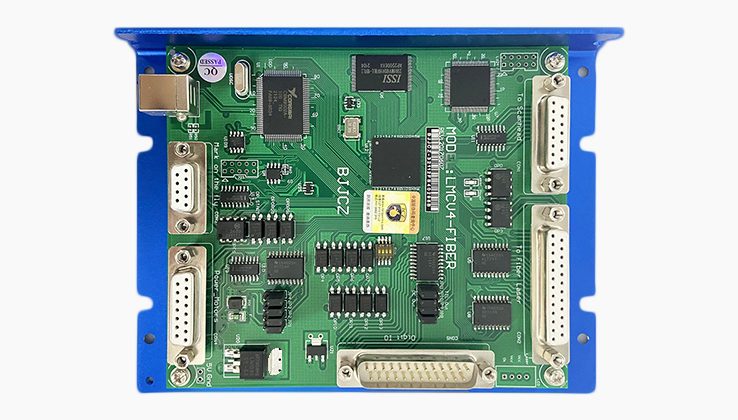

BJJCZ control board and control system

Popular brand in the world, easy to operate, comes with many languages.different kinds of functions. lt can meet customers’ different needs.

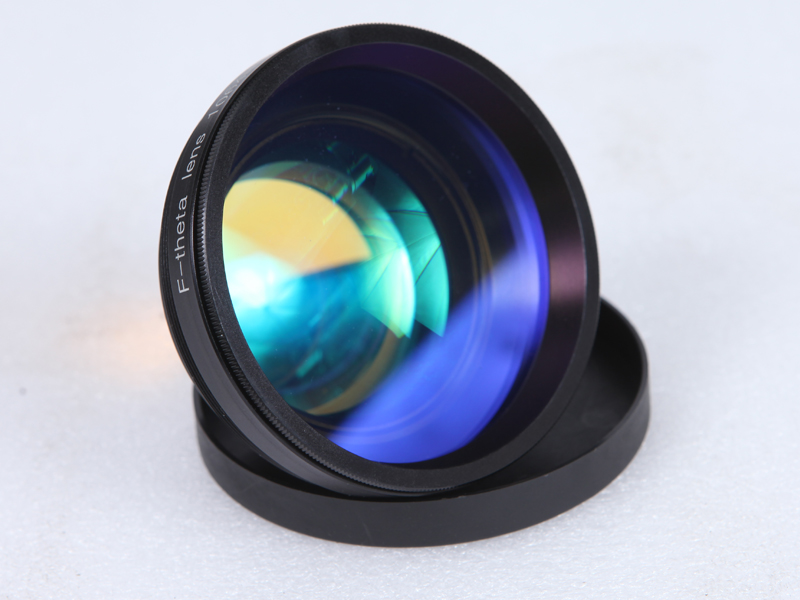

F-Theta lens

F-Theta lenses are commonly used in galvanometer scanning systems for laser marking, engraving and cutting; with the ability to deliver a focused spot to many points within a scanning field.

Application Of CO2 Laser Marking Machine

Co2 laser markers are widely used in the field of non-metal field, such as: garment & shoes engraving, fabric cutting, medical packaging, handicrafts & gift, food printing, soft drink printing, cigarette code, beverage packaging tobacco printing, rubber marking machine, acrylic marker, water bottle marker, marking on plastic, leather engraving industries.

CO2 Laser Marking Machine Packing &Delivery

Packaging:Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

Shipping:We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Central Asia and other inland countries.

Each machine is equipped with instructions and guidance videos.Before installation, we will provide the infrastructure diagram of the equipment installation, equipment installation schematic plan must be submitted in advance to the customer. User must confirm the real conditions fulfil requirements of installation according our engineer’s suggestions.
