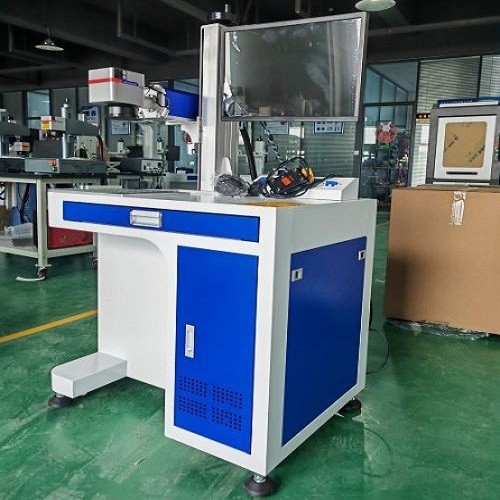

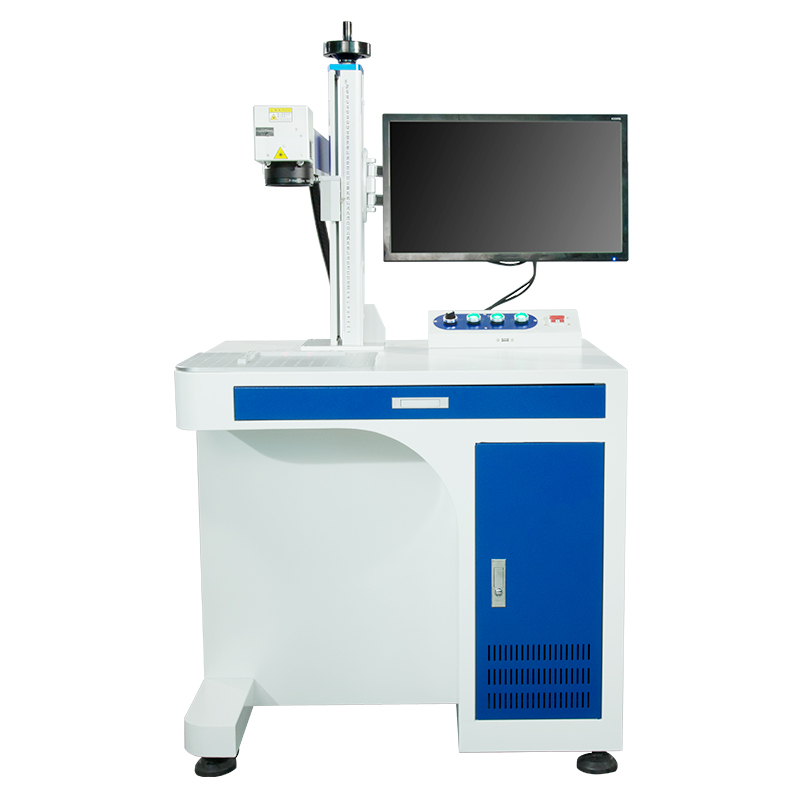

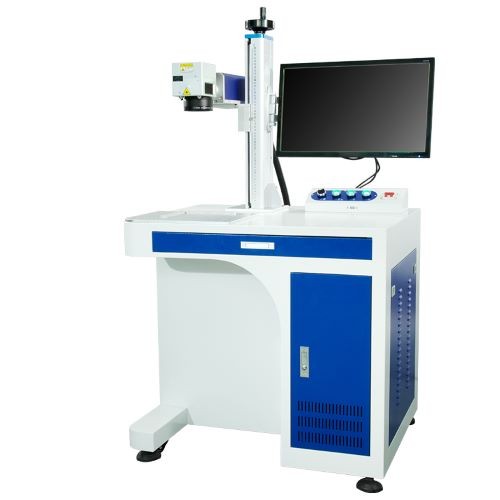

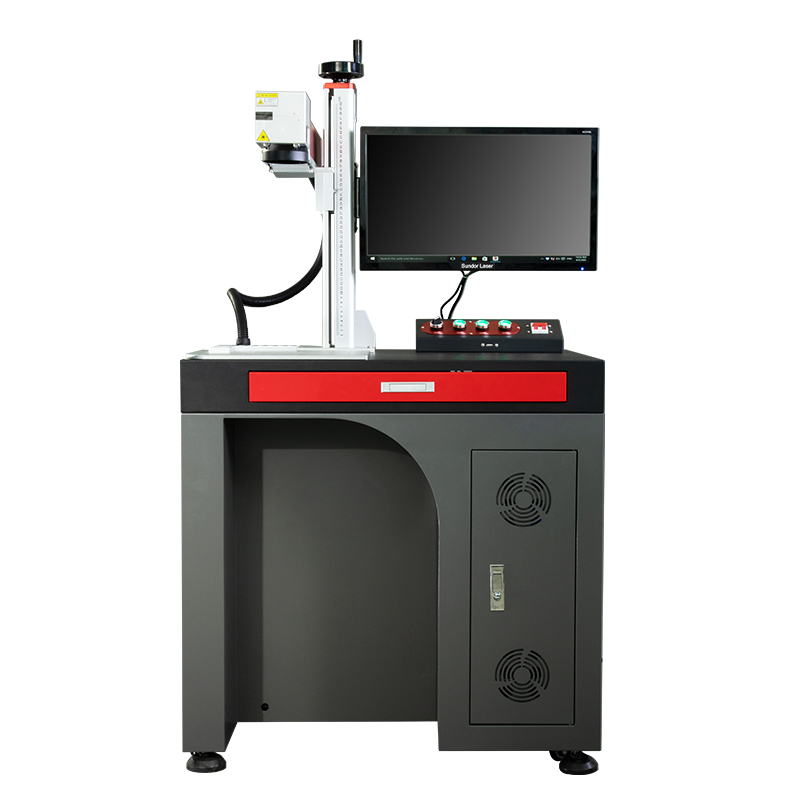

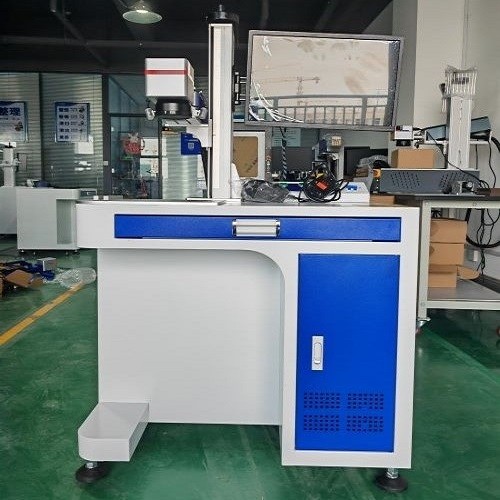

Desktop Fiber Laser Marking Machine |
Desktop fiber laser marker come with the desk and computer. more easy to operate. lt main used to marking and engravincmetal like stainless steel, carbon steel, aluminum, gold, silver ect. Also it can be used to cut silver, gold, brass ect material. Thepower has 20w, 30w, 50w,60, 80w, 100w. There also have Mopa laser, do color marking. lt’s a good choise for customer.
Desktop Fiber Laser Marking Machine Parameters |
Model |
BMF-20/30/50/60/100 |
Laser source |
RAYCUS/MAX/JPT |
Laser power |
20W/30W/50W/60/100W |
Weave length |
1064 nm |
Marking area |
110*110mm,150*150mm,175*175mm,220*220mm,300*300mm |
Marking speed |
7000-12000mm/s |
Marking depth |
0.01-1mm |
Repetition Precision |
0.01mm |
Minimum Line Width |
0.017mm |
Minimum Character |
0.2 mm |
Cooling Style |
Air cooling |
Positioning Way |
Red light |
Control software |
JCZ EZCAD 2.12 Professional fiber laser marking software |
Supported Format |
PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC |
Control board |
JCZ |
Operating Voltage |
AC220V/50HZ/2A |
Gross Power |
≤500W |
Supported Windows |
Windows XP,7,8,10 |
Certificate |
ISO, CE, FDA |
Material can be processed |
all metal material and part of non-metal material, such as hard plastic |
Others |
USB cable for connection, Flash drive with software and English manuals. |
Packaging |
Wooden Box |
Packaging Dimension |
880*870*1100mm |
Gross weight |
110kg |
Desktop Fiber Laser Marking Machine Details |

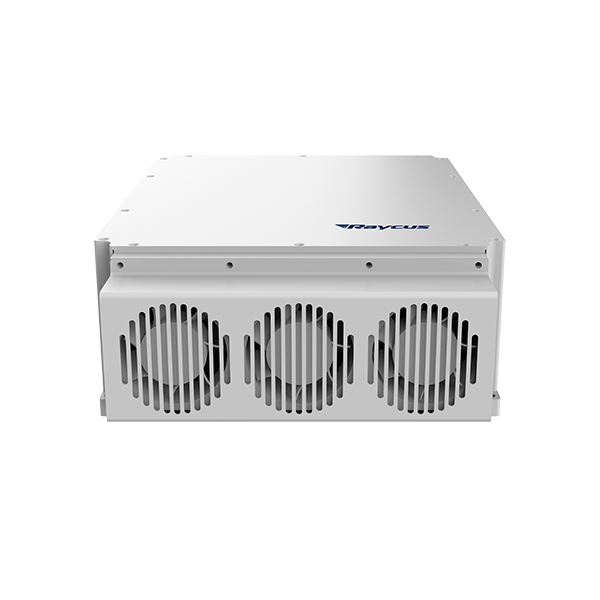

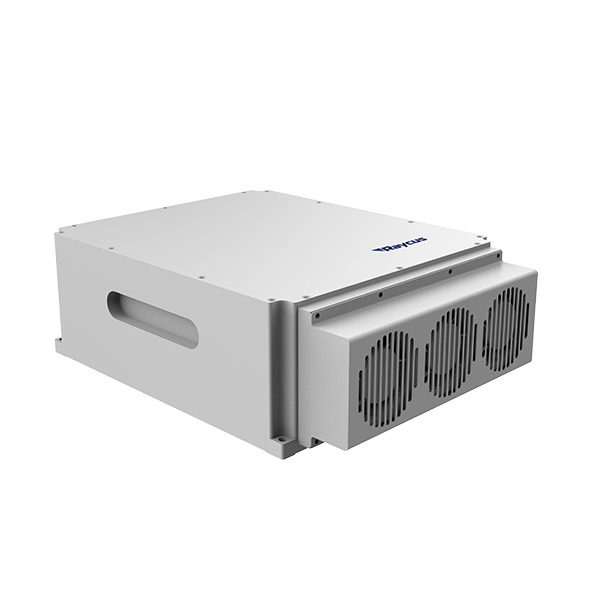

Laser Source
The 20-100W Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.

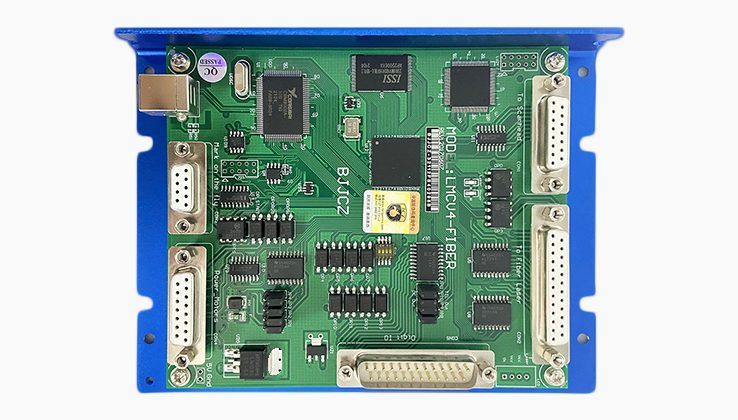

BJJCZ control board and control system
Popular brand in the world, easy to operate, comes with many languages.different kinds of functions. lt can meet customers’ different needs.

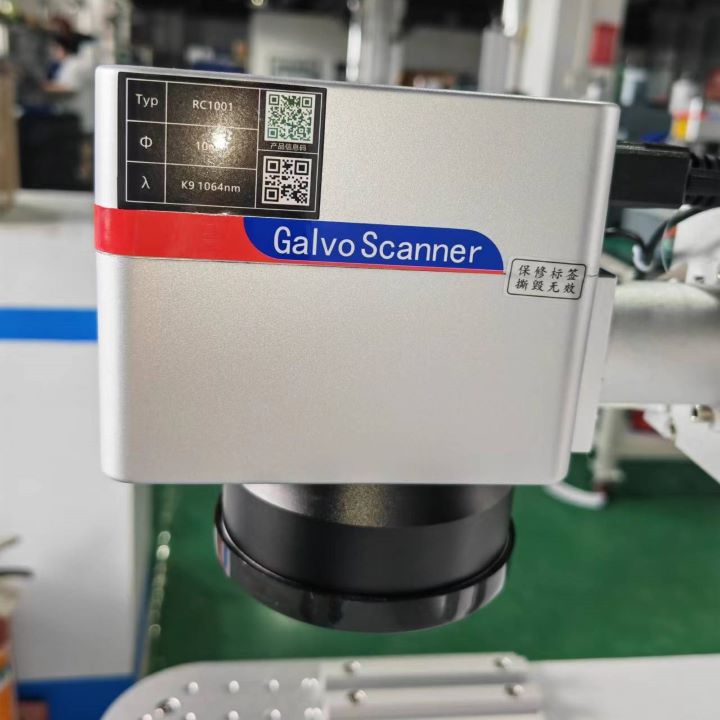

Sino-Galvo Galvanometer
The sino-galvo scanner has the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall performance of galvanometer has reached the international leading level in this field.

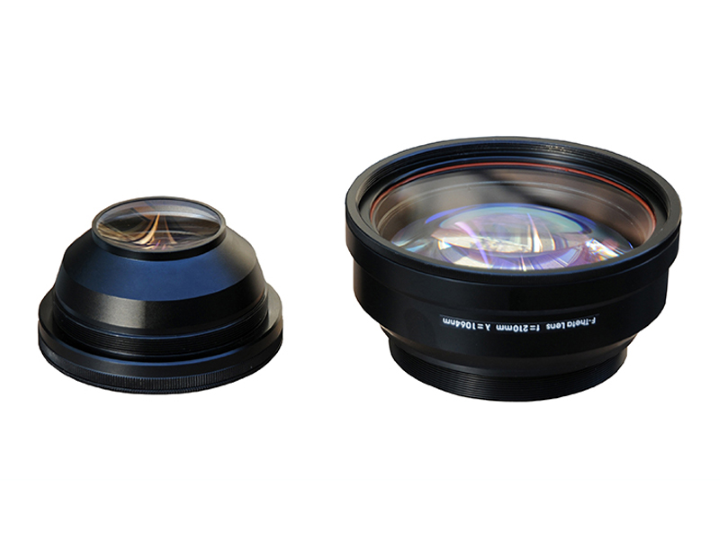

F-Theta lens
F-Theta lenses are commonly used in galvanometer scanning systems for laser marking, engraving and cutting; with the ability to deliver a focused spot to many points within a scanning field.

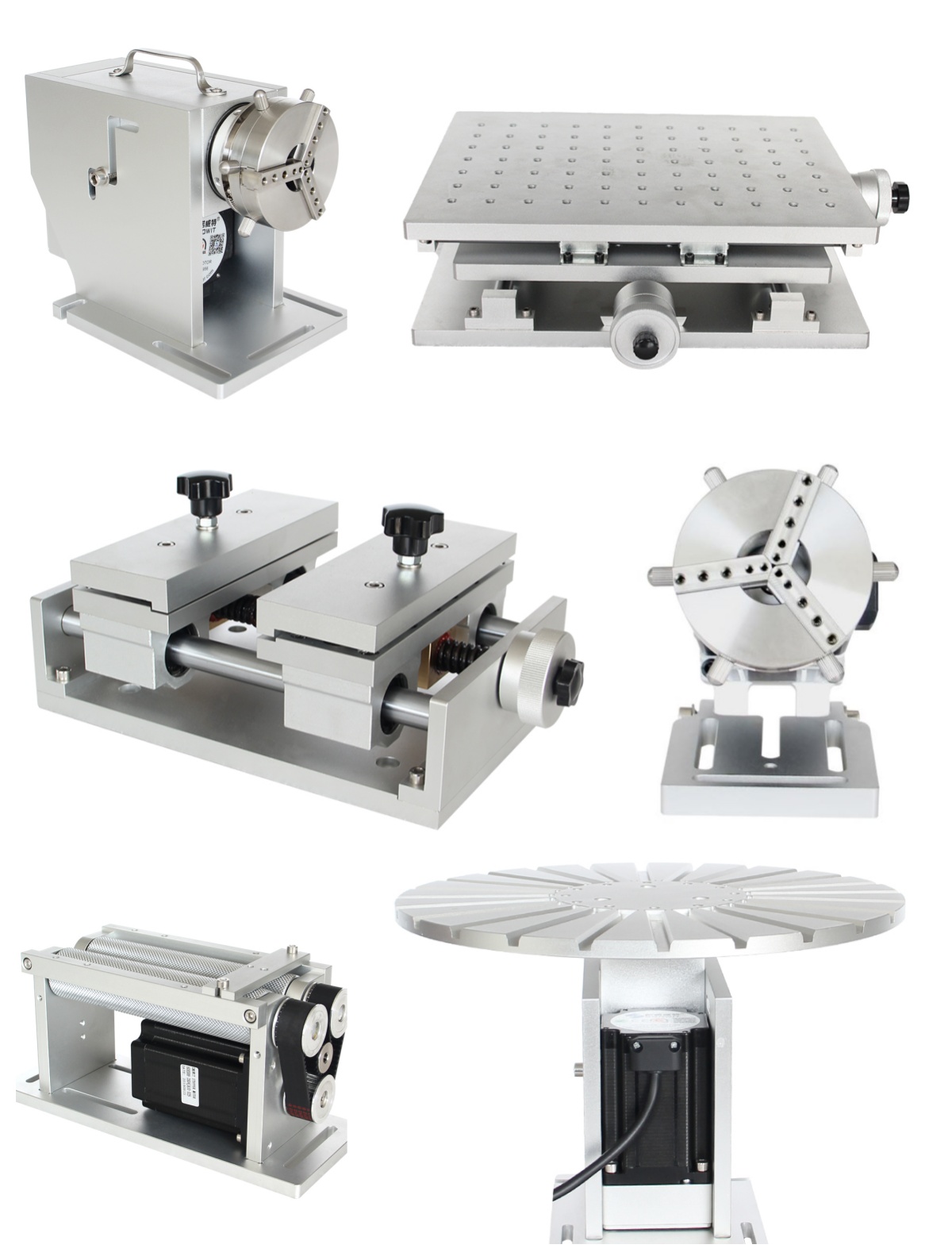

Fiber Laser Marking Machine Optional Accessories
Desktop Fiber Laser Marking Machine Application

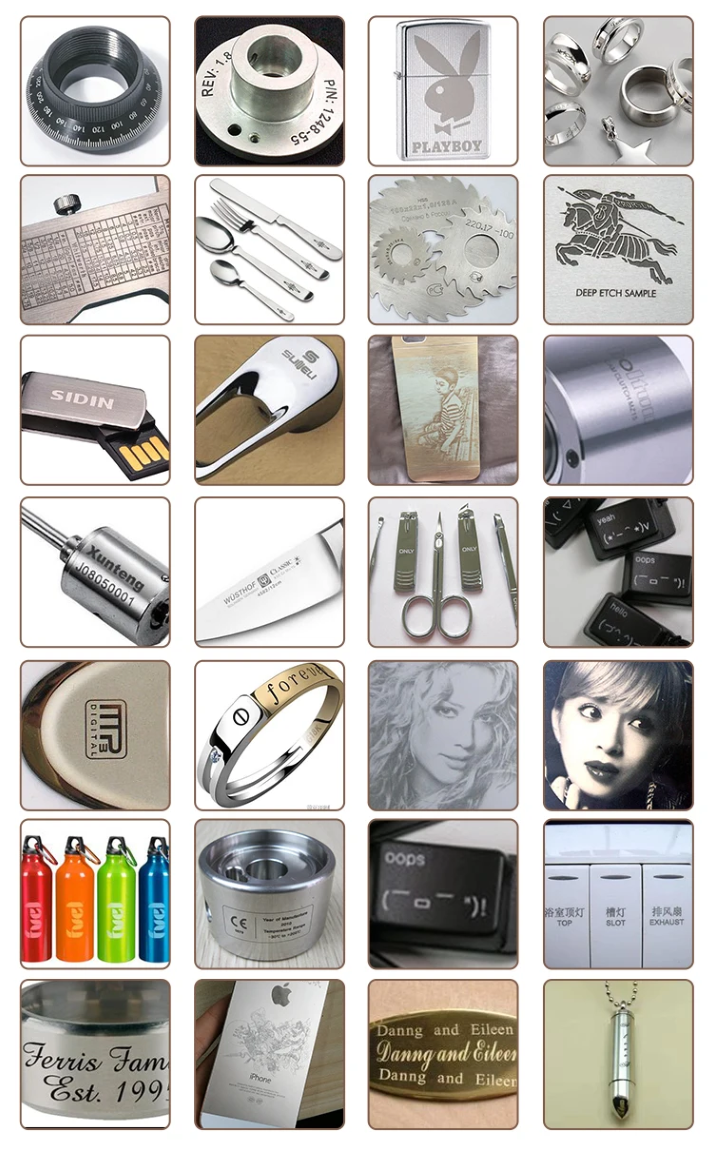

Precision instruments, computer keyboards, auto parts, metal credit cards, plumbing parts, communications equipment, medical equipment, bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable, industrial bearings, building materials, hotel kitchen, military, pipelines, tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising, logo.

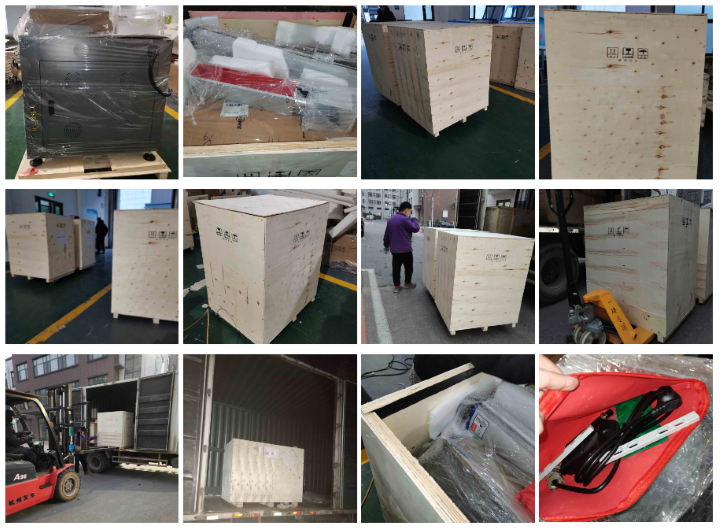

Fiber Laser Marking Machine Packing & Delivery |
Packaging:Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
Shipping:We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Central Asia and other inland countries.
Each machine is equipped with instructions and guidance videos.Before installation, we will provide the infrastructure diagram of the equipment installation, equipment installation schematic plan must be submitted in advance to the customer. User must confirm the real conditions fulfil requirements of installation according our engineer’s suggestions.
