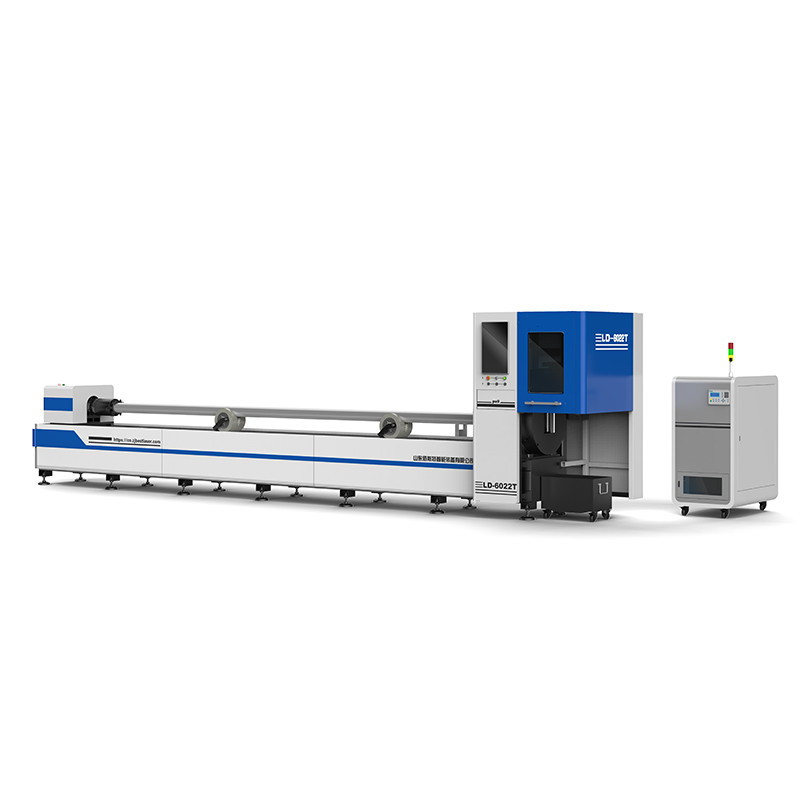

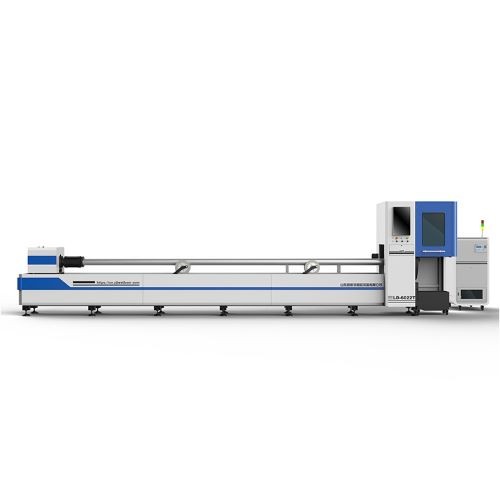

Tube Laser Cutting Machine

Tube Laser Cutting Machine

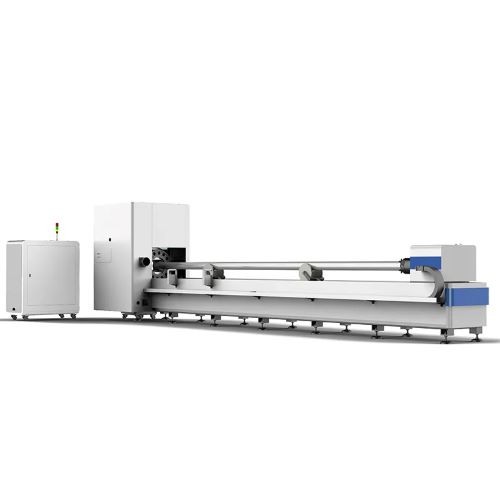

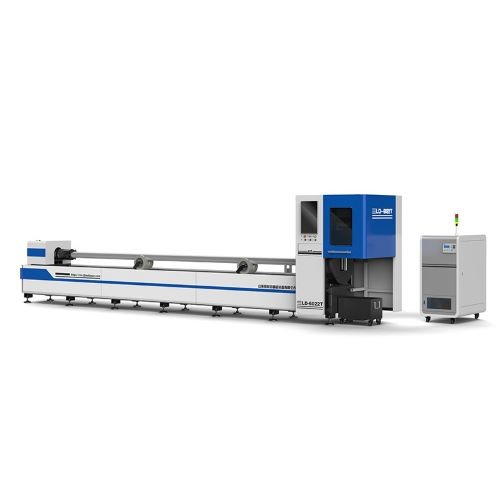

Tube laser cutting machine is a type of automatic CNC metal cutter for square, round and special-shaped pipes made of stainless steel, carbon steel, mild steel, galvanized steel, iron, copper, brass, and aluminum, which is used for straight cutting, tangent, bevel cutting, perforation, 45 degree angle cutting, joint cutting, bevel splicing, and more metal pipe cutting projects & plans.

Tube laser cutter is an automatic CNC pipe cutting system that uses laser beam to cut square tubes, round tubes, oval pipes, rectangular tubes, triangular tubes, hexagonal tubes, elliptical tubes and some custom special shape pipes made of carbon steel, stainless steel, tool steel, mild steel, aluminum, alloy, brass, bronze, copper and titanium. A laser metal tube cutter machine is a dieless cutting system to cut any types of designs on metal pipes in any angle and direction. Compared with plasma cutting, flame cutting, water jet cutting, and wire cutting, the precision of laser-cut metal is much higher without grinding.

Tube Laser Cutitng Machine Technical Parmeters

Model	BMT6016/6020/6035
Tube Length(mm)	3000/6000/9000
Chuck diameter(mm)	160/220/320
Laser Power(kw)	1500W/2000W/3000W/6000W
Maximum Speed(m/min)	80
Positioning Accuracy(mm)	0.05
Repeated Positioning Accuracy(mm/m)	±0.02
Maximum Rotational Speed(r/min)	100

Tube Laser Cutting Machine Description

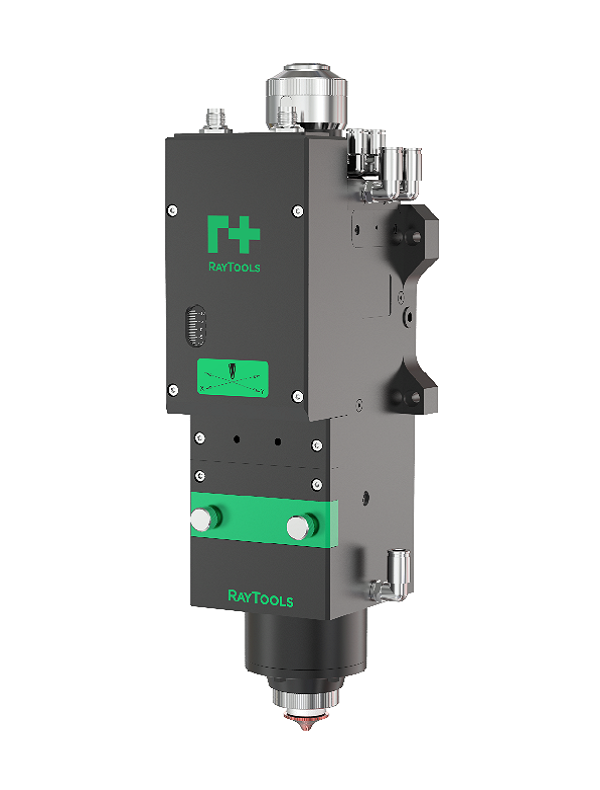

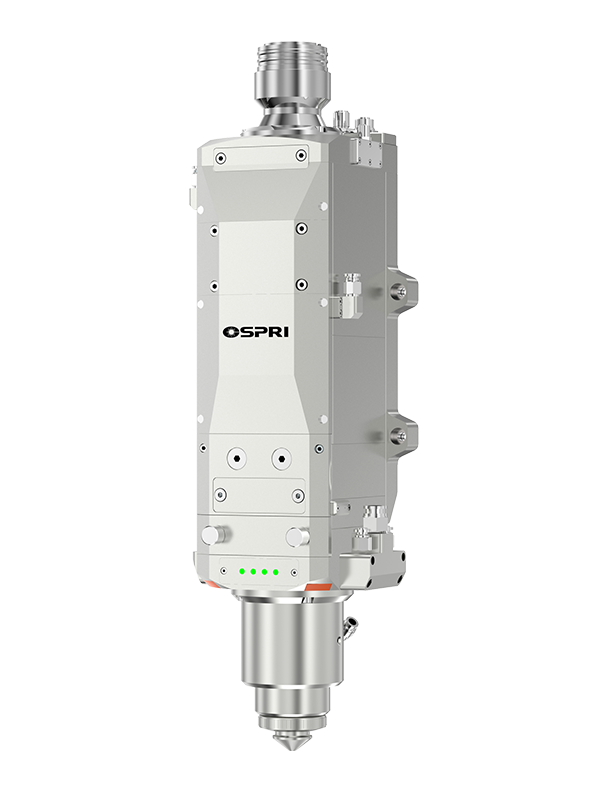

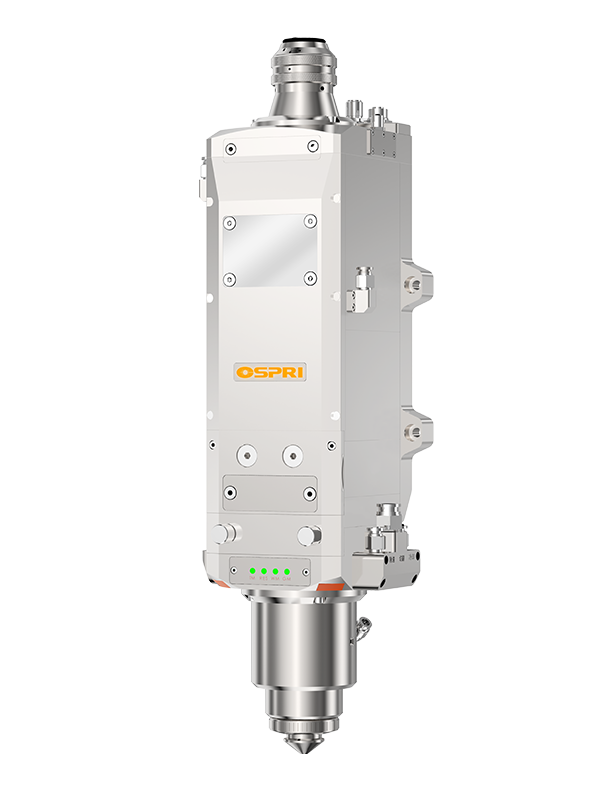

Auto Focus Laser Head

Auto and continuous focusing, automatic cutting of plates of different thicknesses and materials,free your hand and improve cutting efficiency.

Double layer contamination-proof design to protect all collimator lens and focusing lens,minimizing the risk of contamination of the collimator lens to nearly Zero.

Built-in double water-cooling structures can ensure the constant temperature of collimating and focusing components,perfectly solve the problem of heat dissipation.

Optimized optical configuration, smooth and efficient airflow design, no longer jam due to rust.

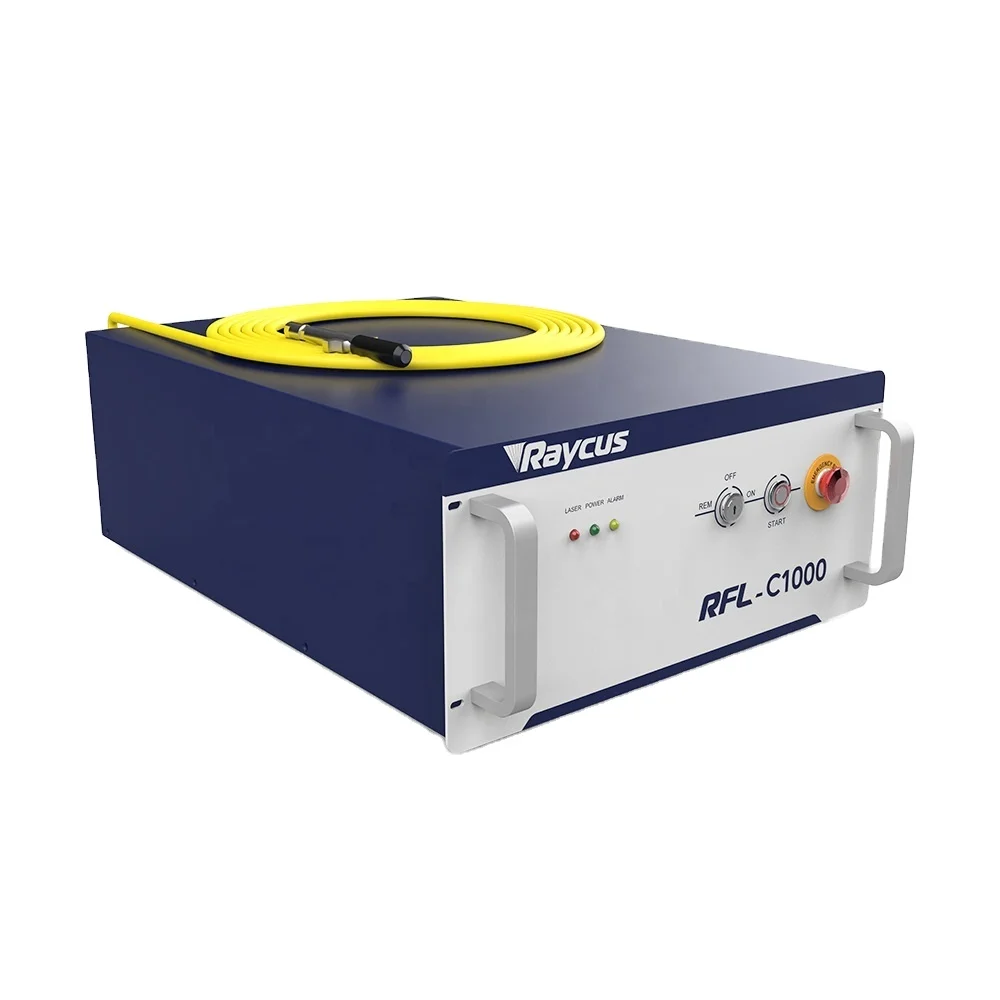

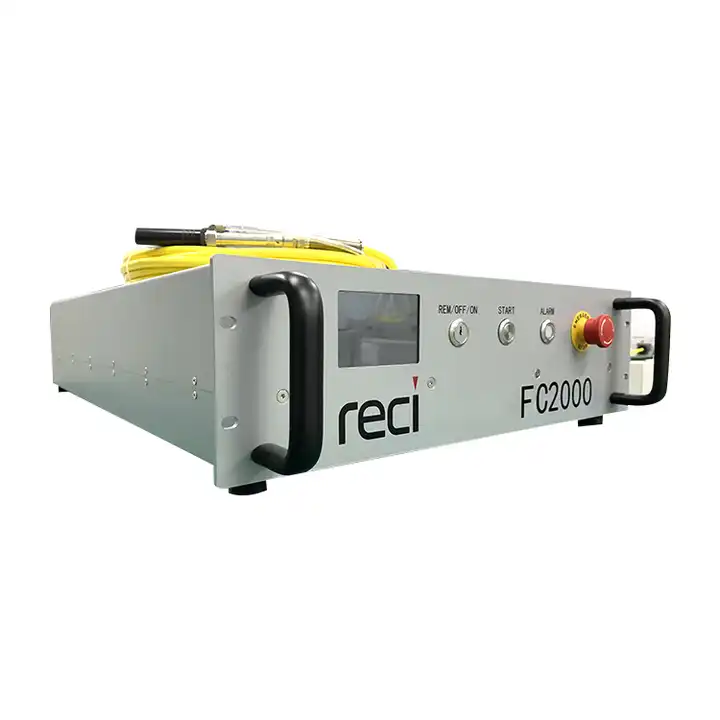

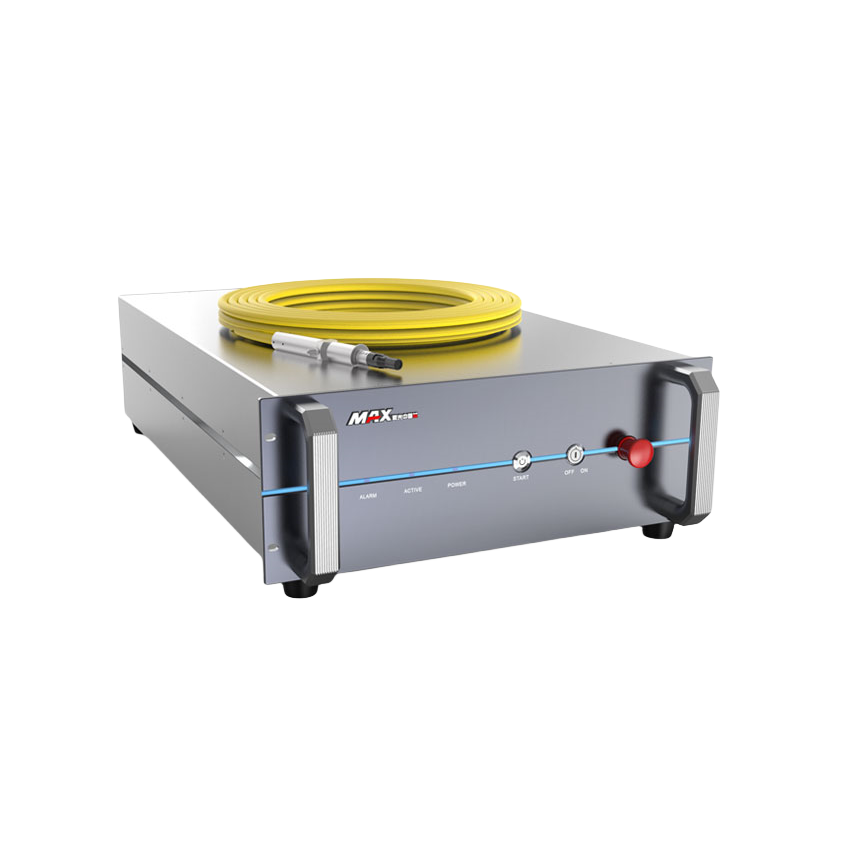

Laser Source,MAX/RECI/RAYCUS,Multiple Choice

Supply different brands, different power laser source. The higher power, the thicker cutting thickness. Give longest warranty time for laser source.

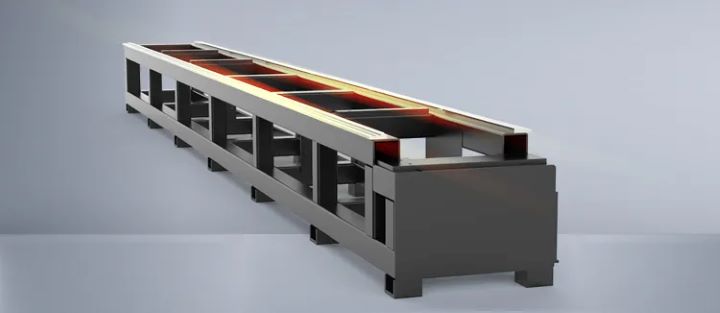

Machine Bed

The bed structure is optimized and upgraded, after high-temperature annealing heat treatment, vibration aging and other precision processing, the welding stress and processing stress are effectively eliminated, the product accuracy is guaranteed, and the bed is more reliable.

High precision chuck

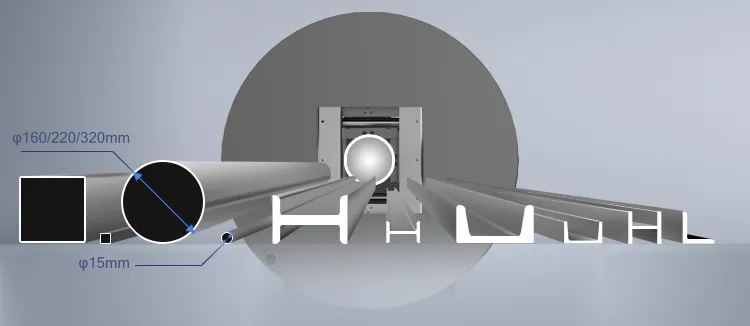

Chuck clamping diameter: 15-160/220mm, supports high-speed and high-quality cutting of stainless steel pipes such as square pipes, round pipes, I-beams, channel steels, angle steels, and carbon steel pipes.

Tube Laser Cutting Machine Details Display

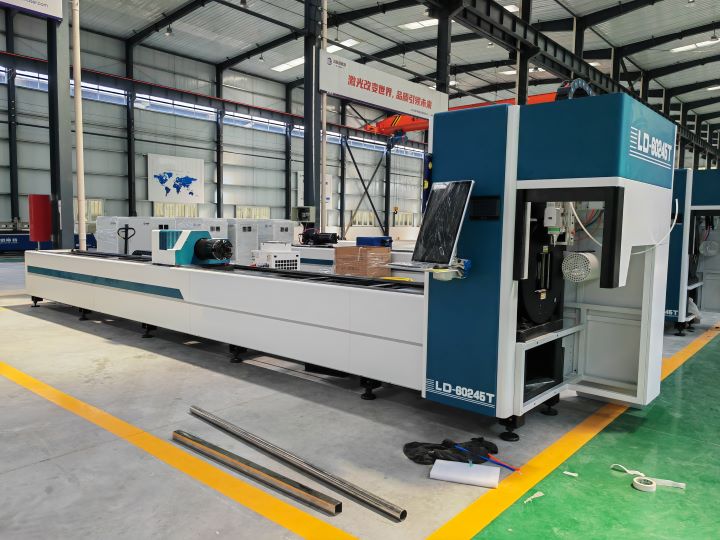

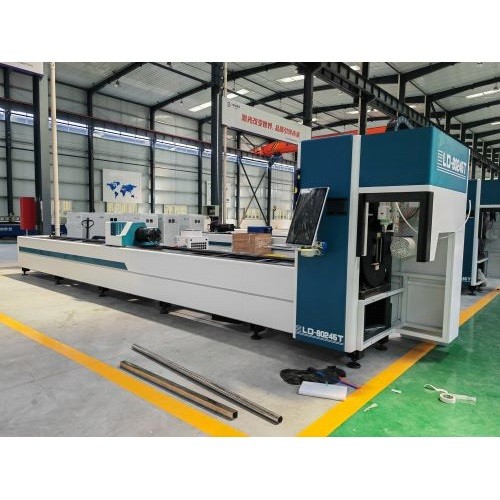

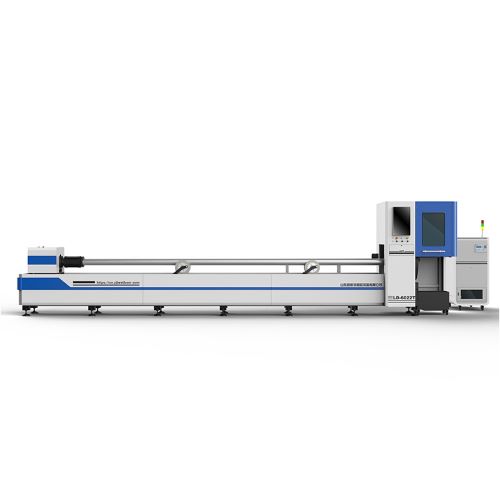

BMT60245 tube laser cutting machine was completed in our workshop

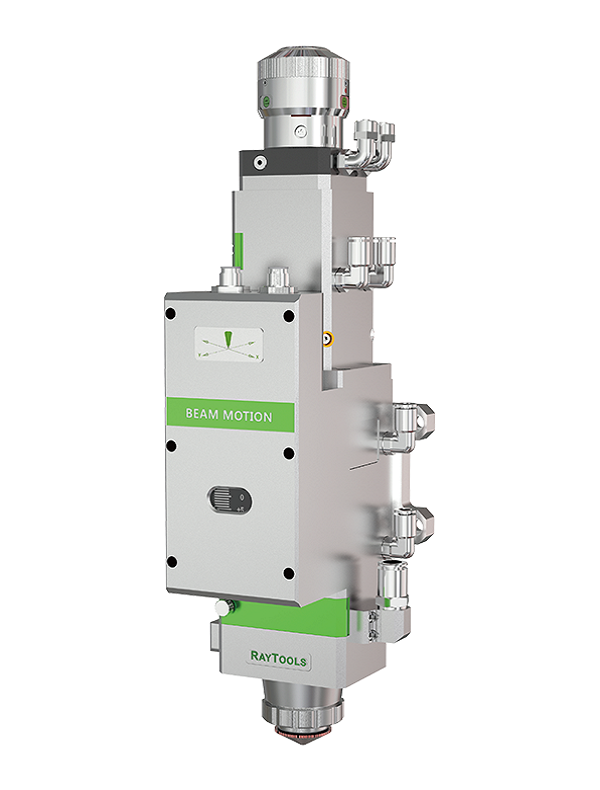

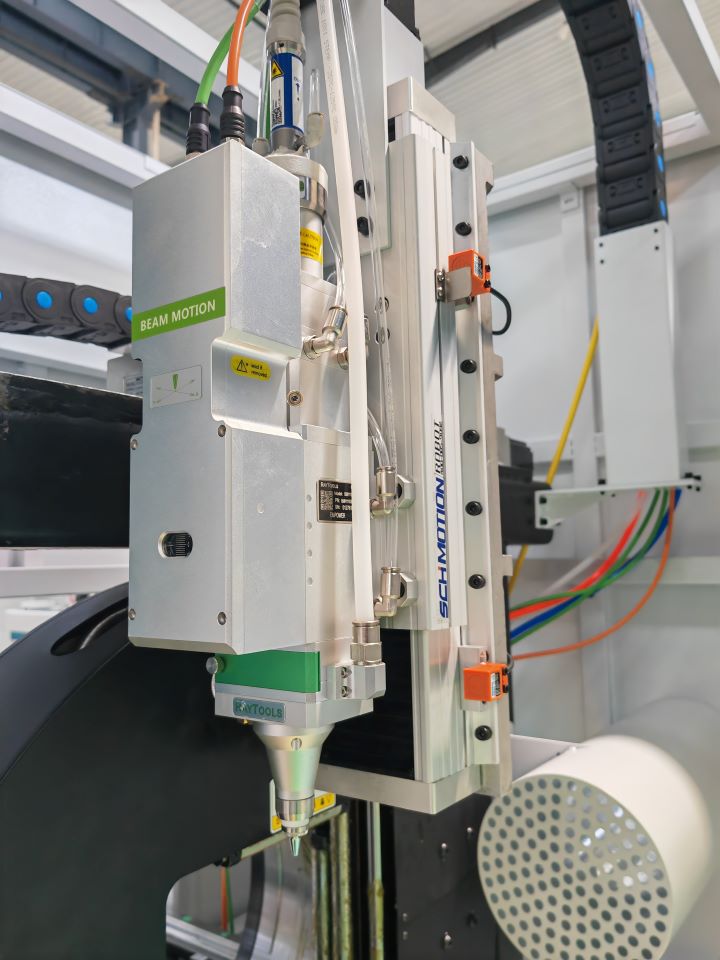

Raytools BM111 auto focus laser head

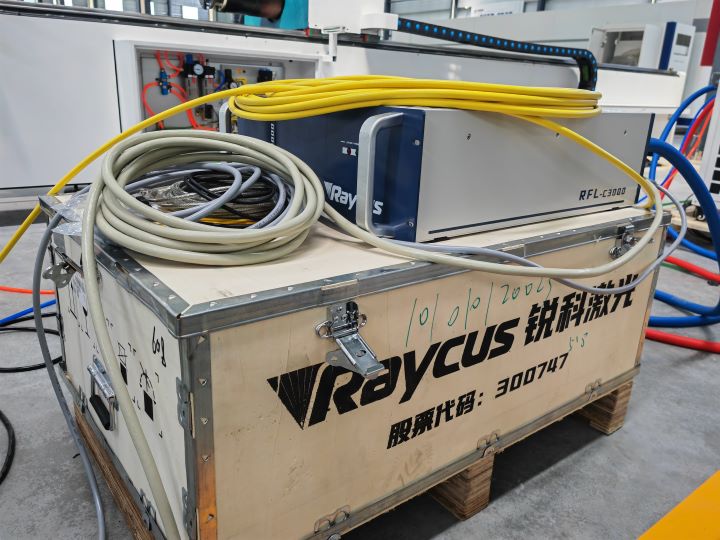

Raycus 3000W laser source

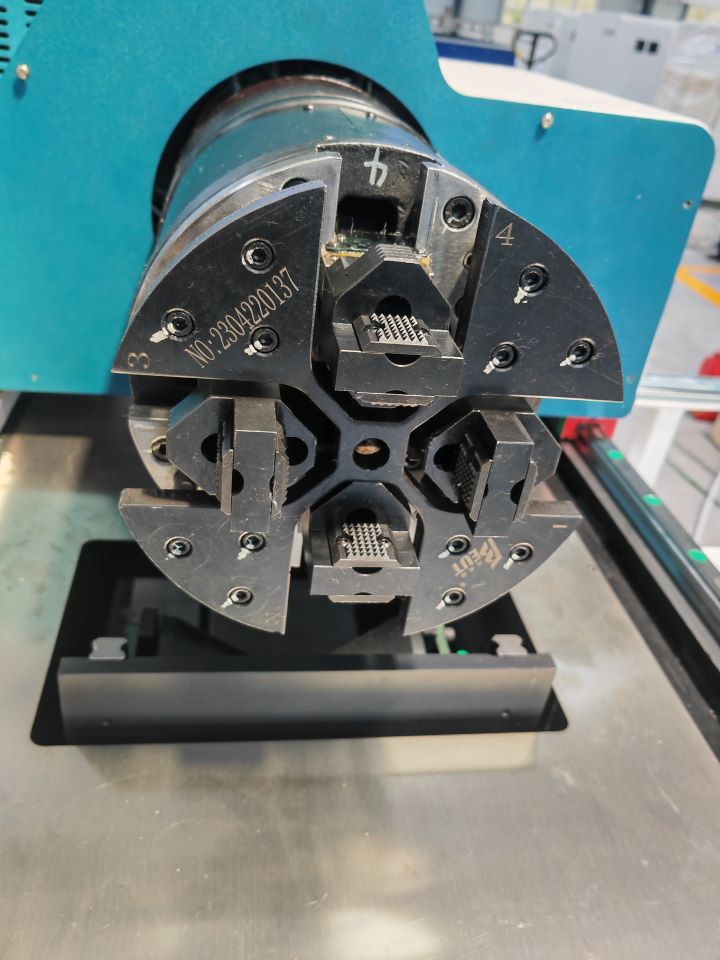

High precision pneumatic rear chuck

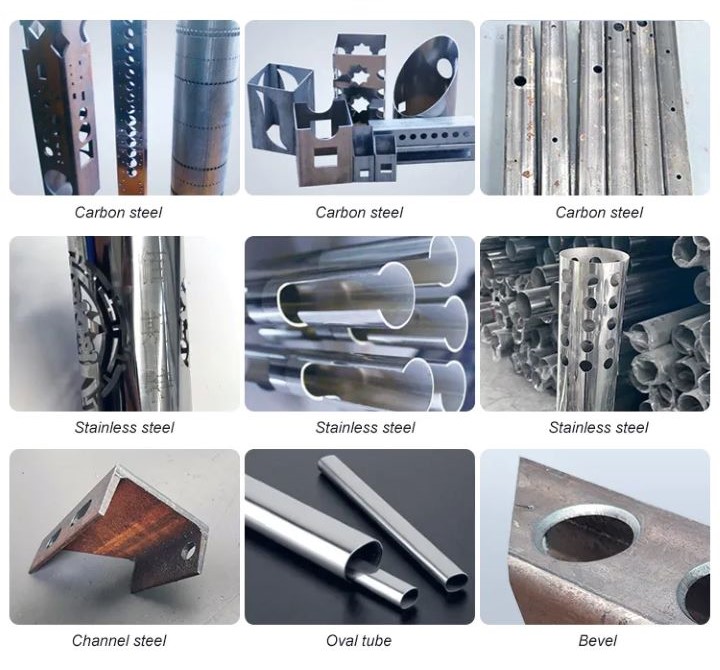

Tube Laser Cutting Machine Application

Tube laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

After-Sales Service for Tube Laser Cutting Machine

1. As a professional fiber laser cutting machine manufacturer and supplier, we will supply the fiber laser machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting.

2. You can come to our fiber laser machine factory for training. We will offer professional guidance, direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility.

3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.

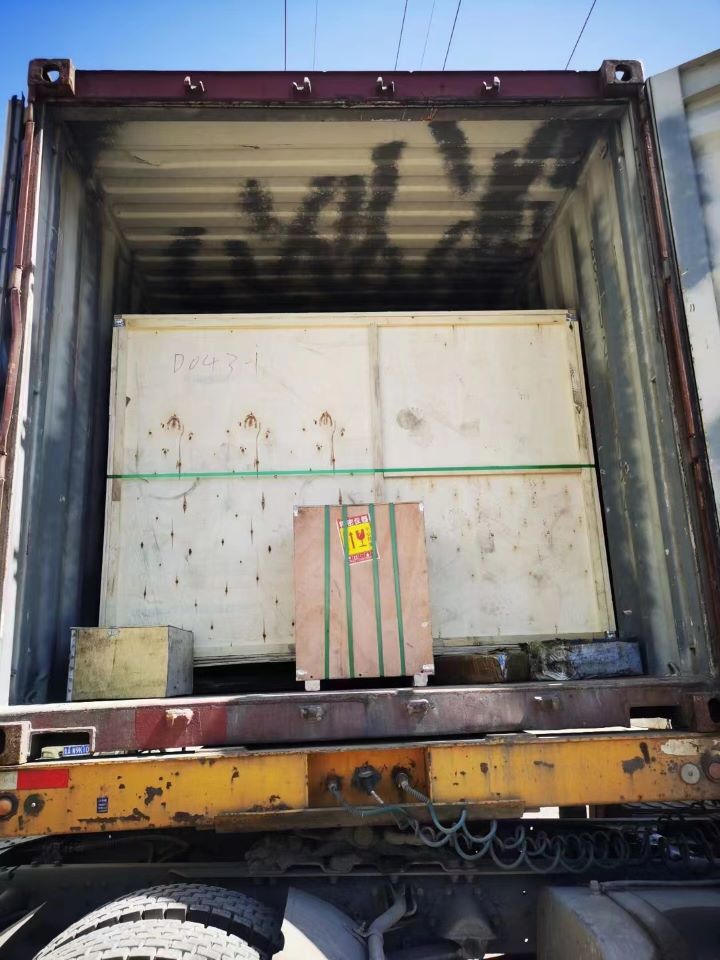

Package & Delivery for Tube Laser Cutting Machine

Packaging:

Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

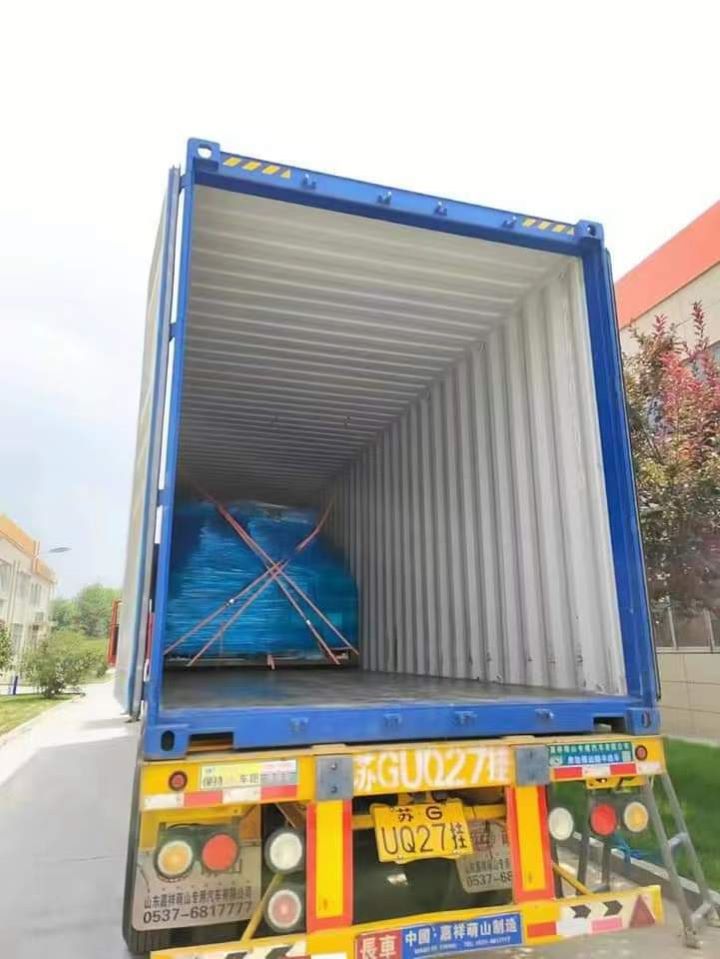

Shipping:

We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Central Asia,Europe and other inland country.
