Sheet and Tube Laser Cutting Machine

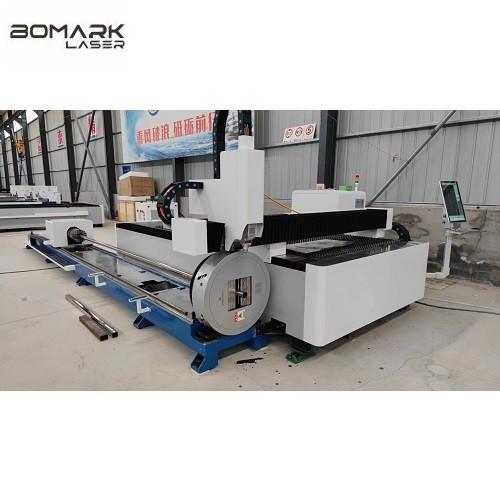

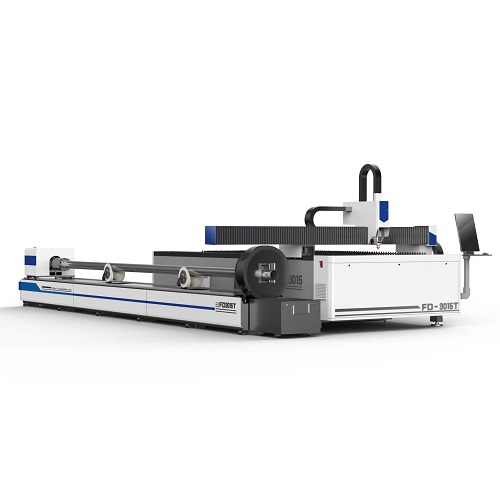

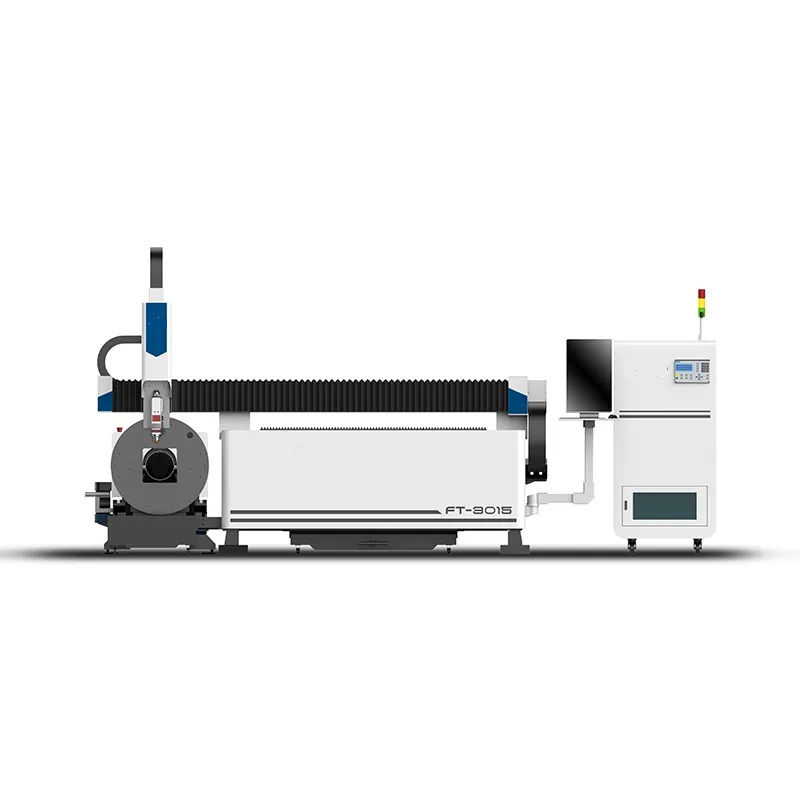

Sheet & Tube Integrated Fiber Laser Cutting Machine-Dual Use Laser Cutting Machine

BMF3015T6 dual use laser cutting machine is an upgraded model from BMF3015, it can cut most of the sheet metals, metal plates, metal tubes, metal pipes. Greatly saving the cost of purchasing two kinds of machines, saving more than 50% of workshop space, doubling production efficiency.

The metal tube cutting capacity is widely used in sports equipment, various types of pipe, water pipes, oil pipelines and other industries, it is suitable to cut various special-shaped pipe materials such as round pipe, square pipe, rectangular pipe, oval pipe, etc.

1. Industrial fiber laser metal cutting machine adopts RECI,MAX or Raycus 1500W~6000W Watts laser source with stable performance, the key parts can reach 100,000 hours.

2. Advanced CNC control system, it can read .ai, .plt, .dxf, .lxd and ug code directly, easy to operate.

3. Intelligent cutting head with capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

4. Imported high precision transmission device which is perfectly work with servo system, thus it can make sure cutting precision and efficiency.

Sheet & Tube Integrated Laser Cutting Machine Technical Parameters

Model

BMFT3015/FT4020/F6020

Working Areamm

3000*1500/4000*2000/6000*2000

Laser Power(kw

1500W/2000W/3000W/6000W

Maximum Speedm/min

120

Maximum accelerationg

1.2

X/Y Axis positioning accuracymm/m

±0.05

X/Y Axis repeated positioning accuracymm

± 0.02

Tube Diameter (mm

square tube20-160Round tube20-220

Tube Length (mm)

3000,6000,9000

Sheet & Tube Laser Cutting Machine Description

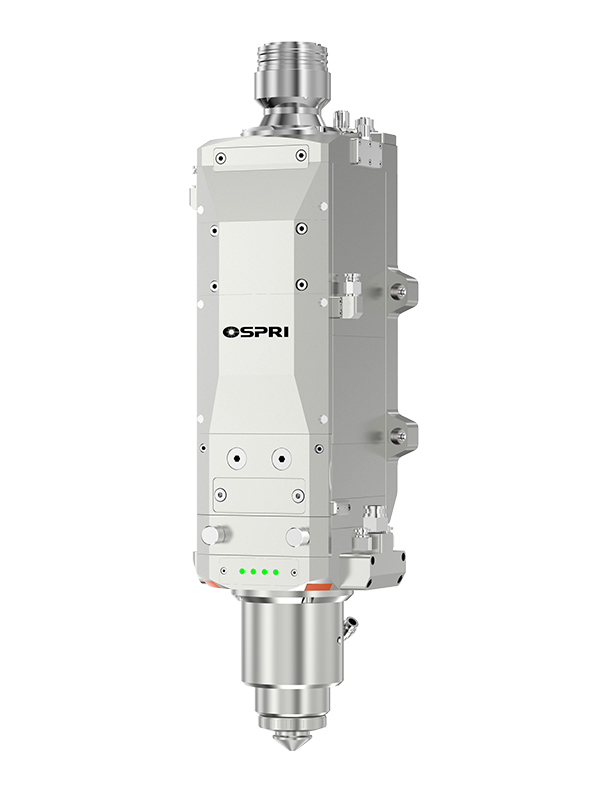

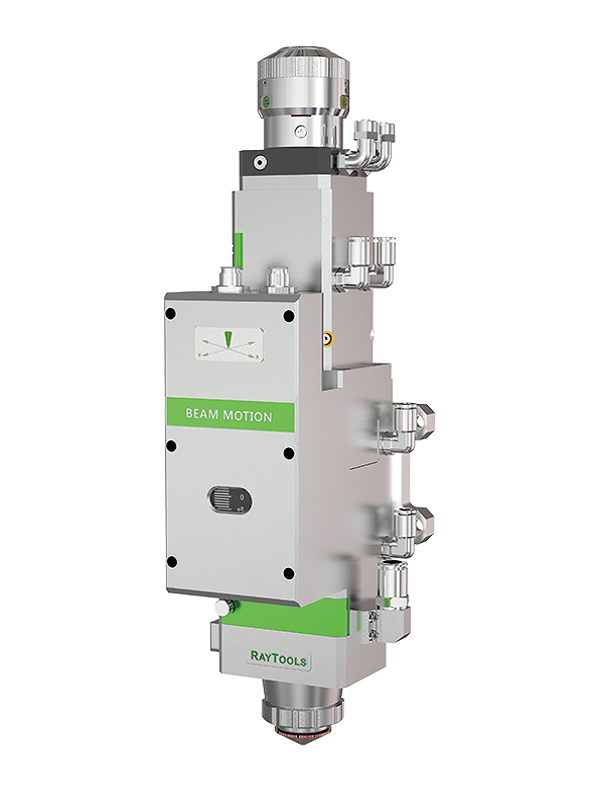

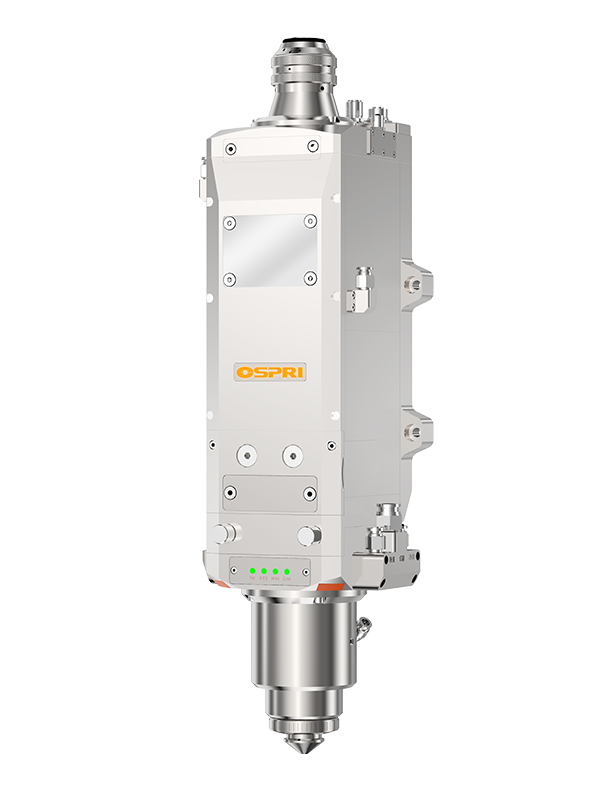

Auto Focus Laser Head

Auto and continuous focusing, automatic cutting of plates of different thicknesses and materials,free your hand and improve cutting efficiency.

Double layer contamination-proof design to protect all collimator lens and focusing lens,minimizing the risk of contamination of the collimator lens to nearly Zero.

Built-in double water-cooling structures can ensure the constant temperature of collimating and focusing components,perfectly solve the problem of heat dissipation.

Optimized optical configuration, smooth and efficient airflow design, no longer jam due to rust.

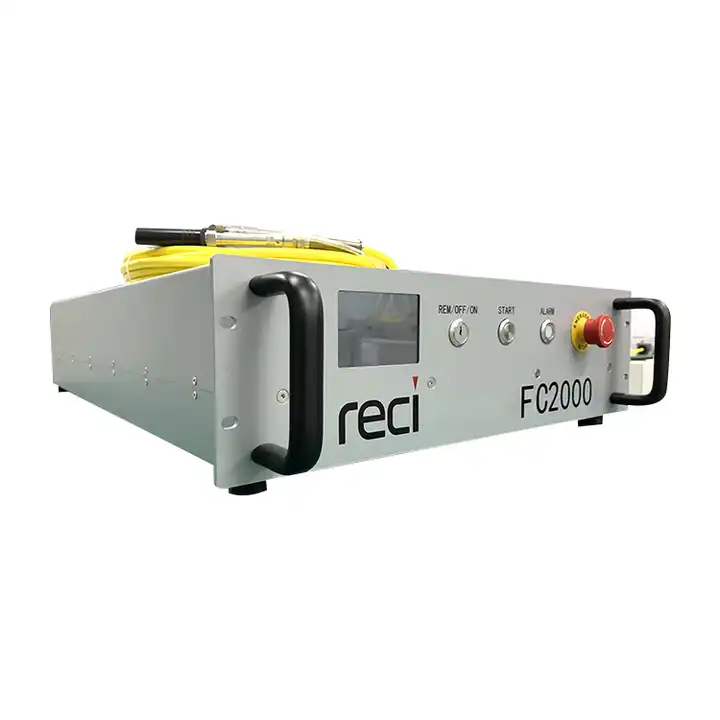

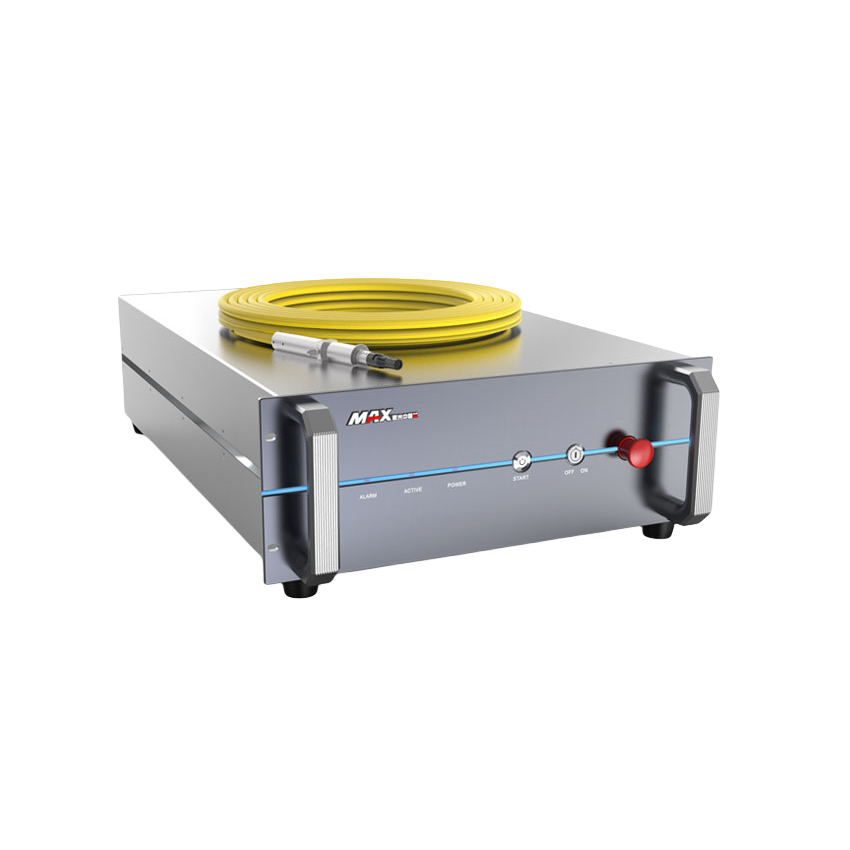

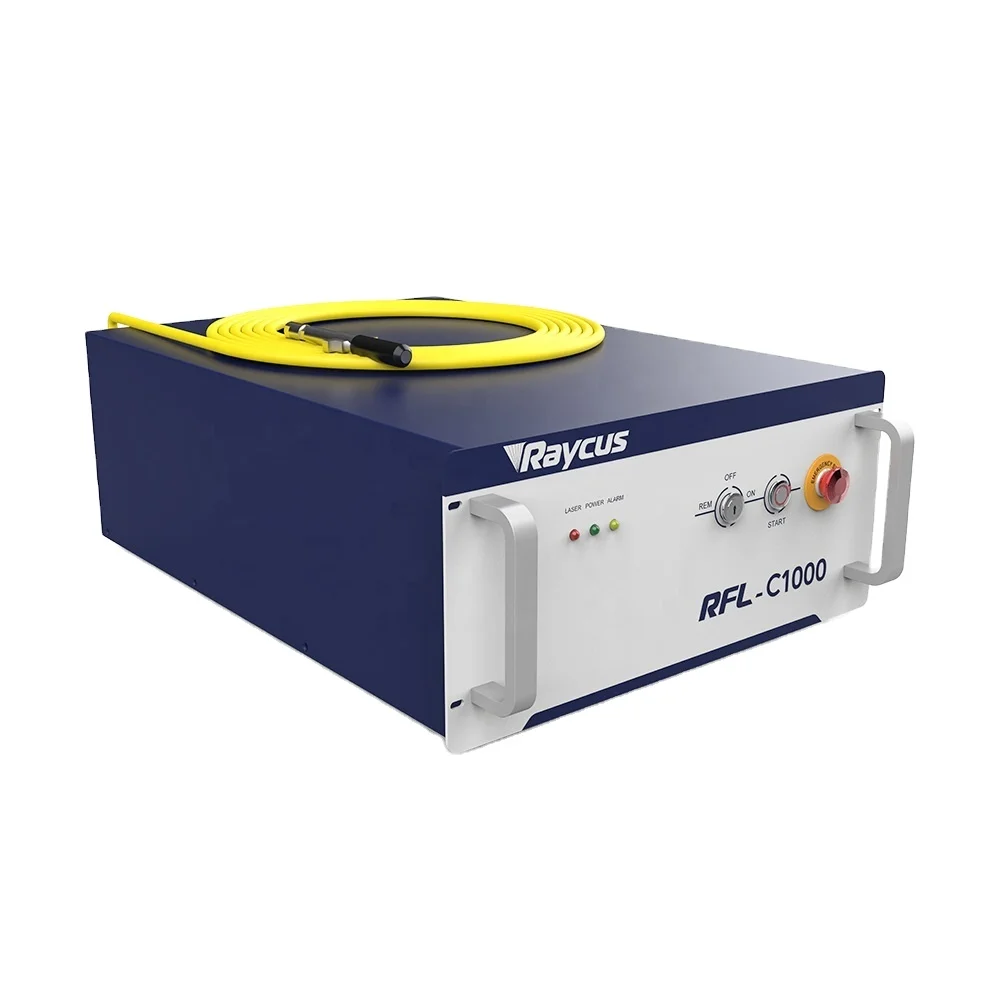

Laser Source,MAX/RECI/RAYCUS,Multiple Choice

Supply different brands, different power laser source. The higher power, the thicker cutting thickness. Give longest warranty time for laser source.

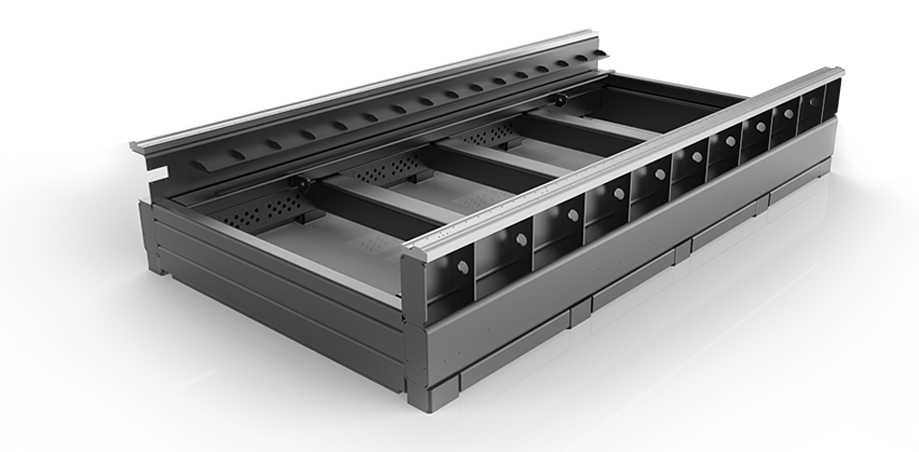

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

High strength, stability, tensile strength, ensuring 20 years of use without distortion;Thickness of rectangular pipe wall is 8~10mm.

High Precision Tube Laser Cutting Machine

Sheet & Tube Integrated Laser Cutting Machine Details Display

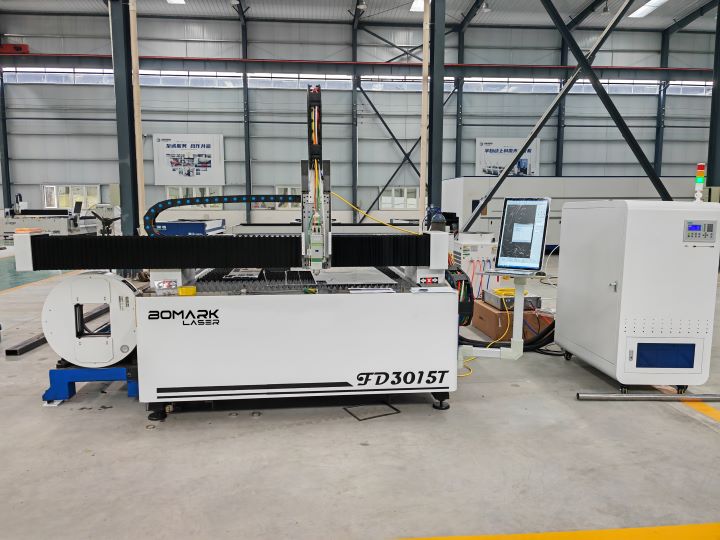

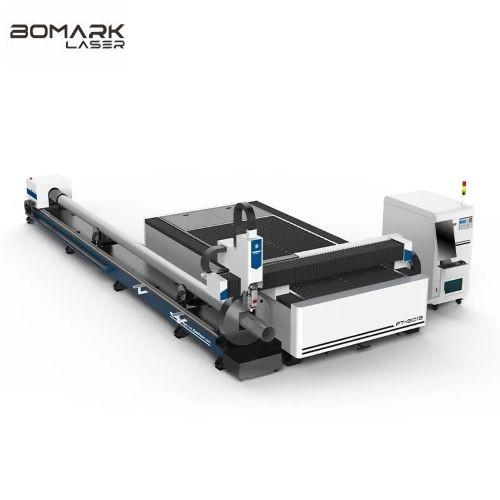

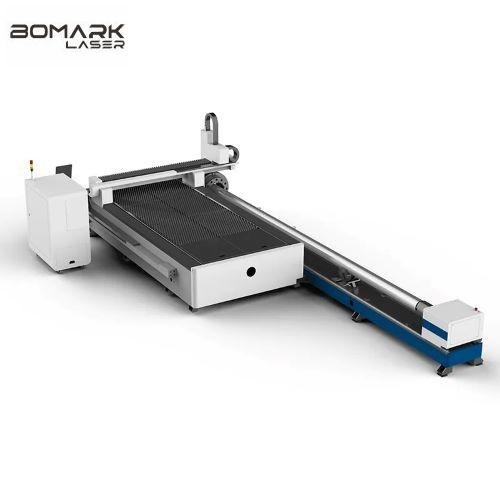

Sheet and Tube Integrated dual use fiber laser cutting machine BMF3015T6-2000W

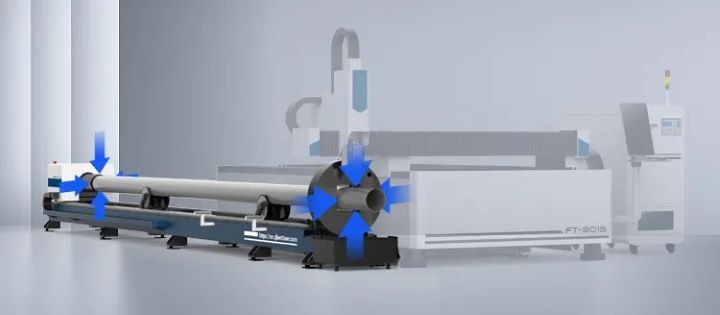

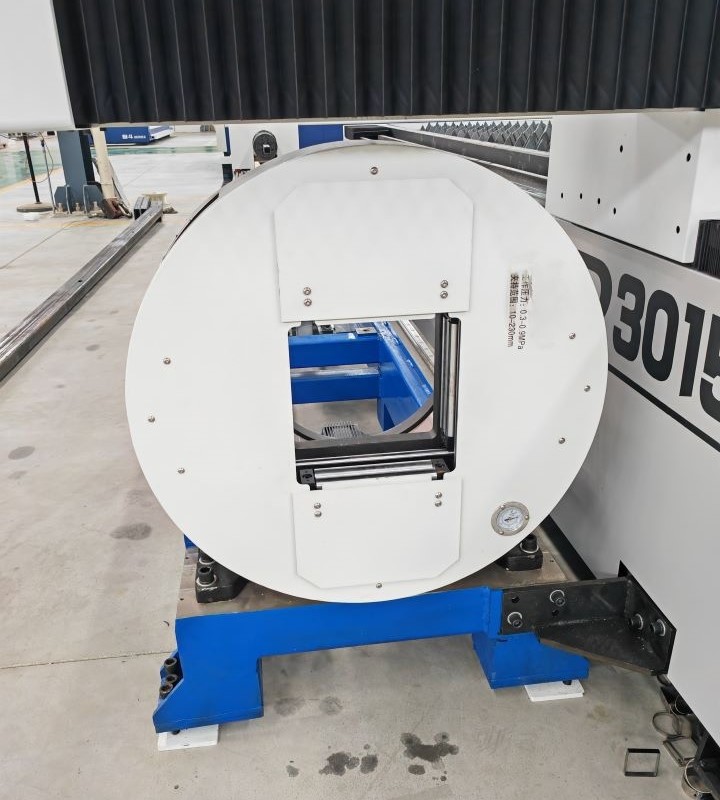

High precision chuck, diameter 160mm,220mm,350mm three models are available.

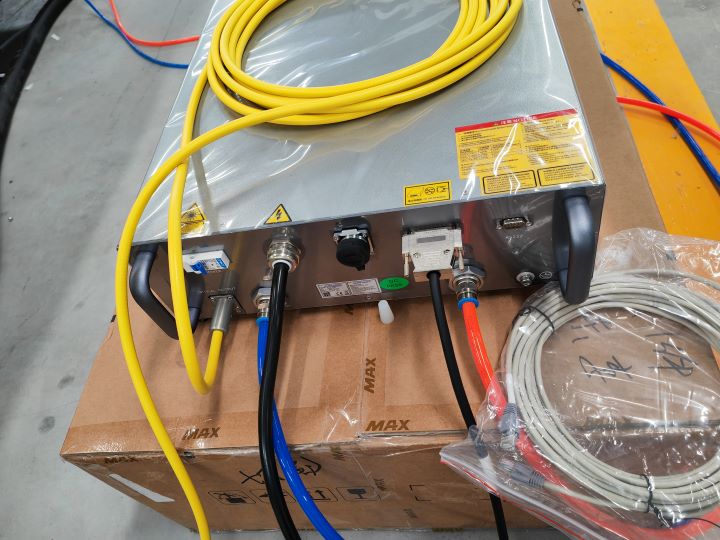

2000W MAX laser source

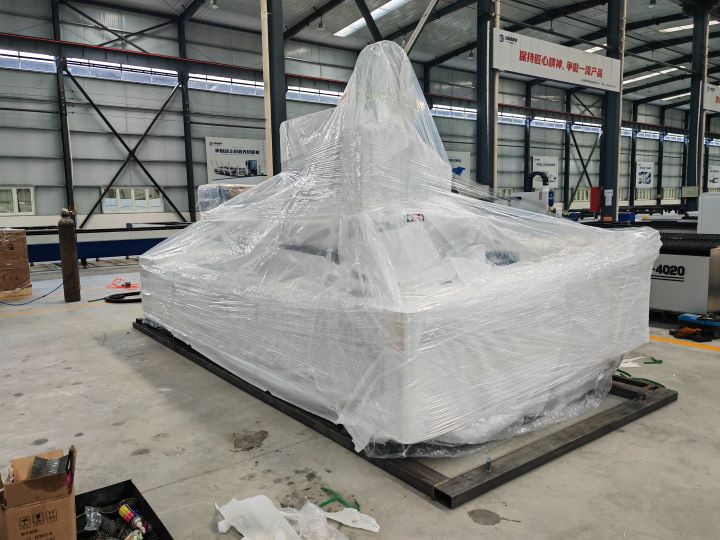

Machine was packed and ready for delivery.

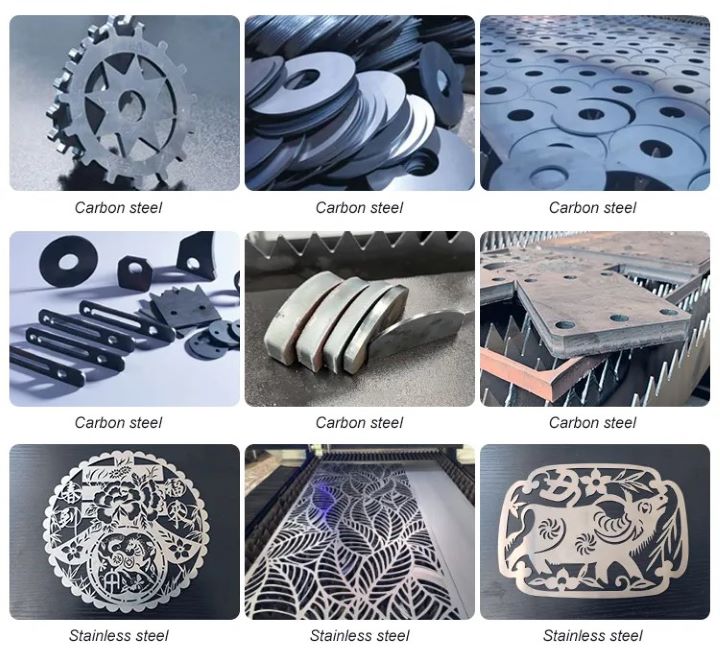

FiberLaser Cutting Machine Applications

Fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.


After-Sales for Laser Cutting machine

1. As a professional fiber laser cutting machine manufacturer and supplier, we will supply the fiber laser machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting.

2. You can come to our fiber laser machine factory for training. We will offer professional guidance, direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility.

3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.

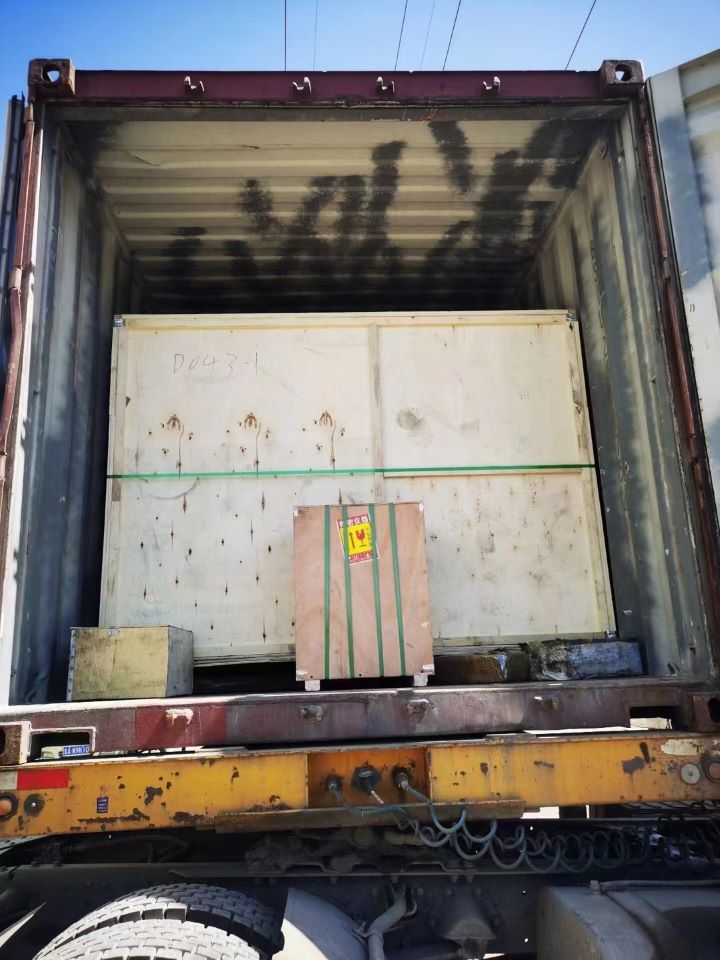

Package and Delivery For Laser Cutting Machine


Packaging:

Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

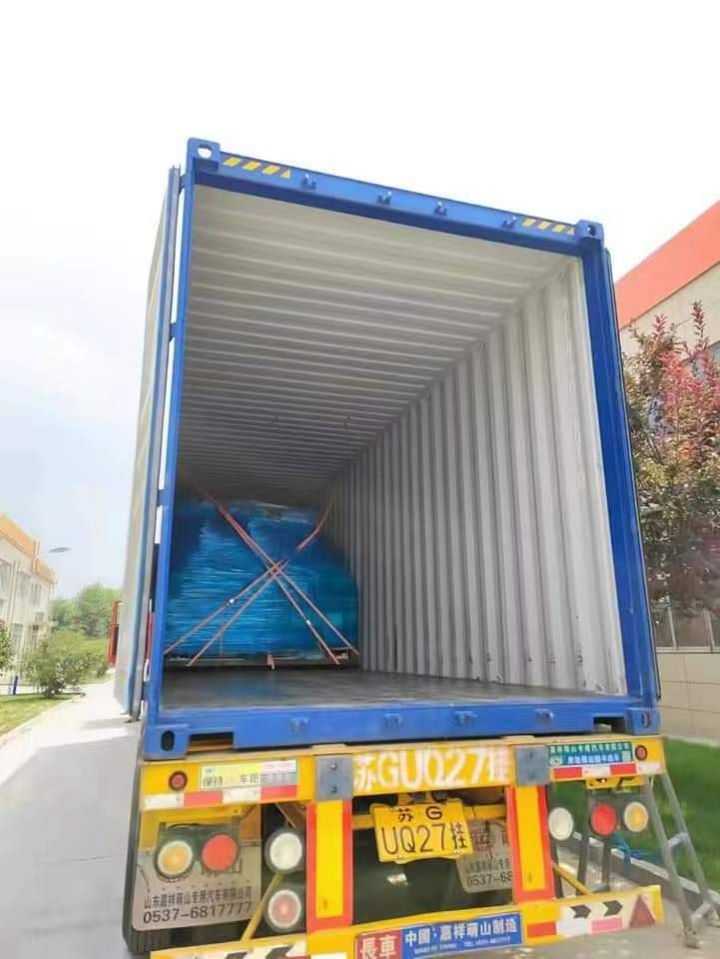

Shipping:

We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Central Asia,Europe and other inland country.
